Overview:

• In any modern development environment especially when working with platforms like MuleSoft maintaining consistency and efficiency across multiple projects is essential. As the number of applications or modules grows, so does the complexity of managing build configurations, dependency versions, and plugin settings. Without a structured approach, this can quickly lead to duplication, version conflicts, and maintenance headaches.
• Maven, being the widely adopted build automation tool, provides several mechanisms to help standardize and streamline project configurations. Whether you’re working on a single Mule application or a large multi-module setup, following a modular design not only saves time but also reduces errors and simplifies collaboration across teams. With the right setup, even complex environments can become easier to manage.
• This blog provides an overview of Maven’s key configuration files – pom.xml, Parent POM, and BOM explaining their purpose, when to use each, and how they interact to streamline build and dependency management.

What is pom.xml?

In MuleSoft, as with any Maven-based project, the pom.xml (Project Object Model) serves as the core configuration file that drives your build process. It is the central piece of information that Maven uses to manage a project. It is located at the root of every mule application and defines how the project is built, what dependencies it uses, and which plugins are applied.

• The POM in Maven captures the “who”, “what” and “where” of a project:
• Who: Defines the project with GAV (GroupId, ArtifactId, Version) and packaging.
• What: Specifies the project’s dependencies, plugins, and build configurations.
• Where: Indicates where the project’s artifacts will be distributed, including repositories and distribution settings.
• The pom.xml file consists of several key elements:

1. GAV

It stands for three fields that act much like an address and timestamp in one.

• groupId: The name of the company or group that created the project.
• artifactId: The name that the project is known by.
• version: This element keeps the version of the project.

1. packaging

• It is mandatory tag is especially important for Mule projects. If not defined, it defaults to jar. Depending on the type of project you are creating, valid values for this tag from MuleSoft’s perspective include:

1. mule-application – Default for Mule applications
2. mule-domain – Used to create domain projects
3. mule-policy – For creating custom policies
4. mule-domain-bundle – For bundling domains into a single archive

• In general Maven projects, common packaging types include:
  • • 1. jar – Java library
      2. war – Web application archive
      3. pom – For parent/BOM projects

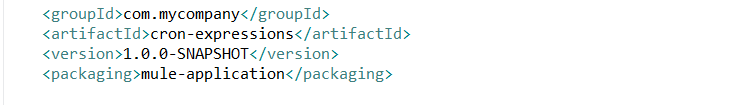

• When creating a Mule project using Anypoint Studio, the tag is automatically configured as <packaging>mule-application</packaging>. These types define the goals bound to a set of lifecycle stages.

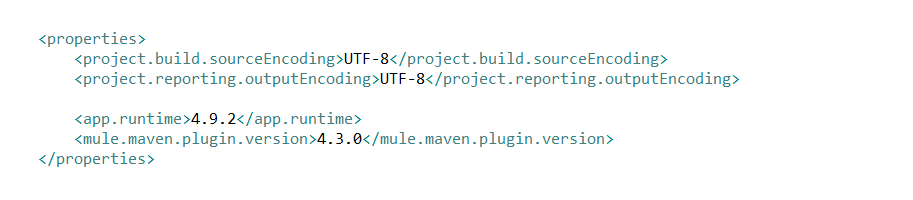

1. properties

• It is used to define reusable, centralized values that can be referenced throughout the file. It helps improve maintainability, readability, and consistency in your Maven project, including MuleSoft applications.
• Instead of hardcoding values (like plugin versions, Java encoding, or custom configurations) in multiple places, you define them once under <properties> and reuse them using ${property.name} syntax.

1. build

• The <build> tag in Maven’s pom.xml defines how your project should be built. It contains settings related to the build lifecycle, including source directories, output directories, and, most importantly, plugins that control key steps like compilation, packaging, testing, and deployment.
• In MuleSoft projects, the <build> section is crucial because it includes configuration for the Mule Maven Plugin, which packages and deploys your Mule application correctly.

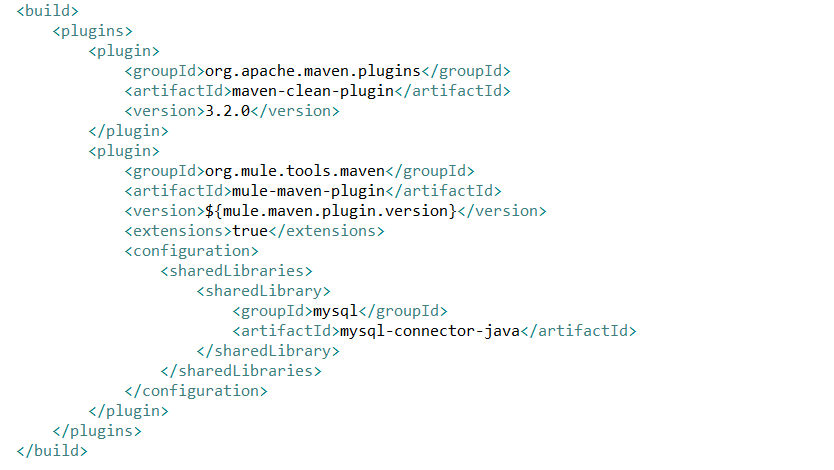

1. plugins

• The <plugins> tag is part of the <build> section in Maven’s pom.xml, and it defines which tools or extensions are used during the build lifecycle of your project. In simpler terms, plugins are like scripts that automate tasks such as compiling code, running tests, packaging applications, and deploying them.
• In MuleSoft projects, plugins are especially important because they automate tasks like packaging your application into deployable archives (.jar or .zip), cleaning target directories, and deploying applications to Cloud Hub or on-premises environments.

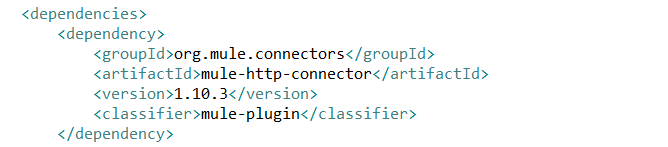

1. dependencies

• The <dependencies> tag in pom.xml is where you declare all the external libraries and modules your project needs to run. In a MuleSoft application, these dependencies typically include connectors, modules, Java libraries, or any other components your application relies on at runtime.
• Maven uses this section to automatically download and manage the specified dependencies from central or remote repositories and store them in your local Maven .m2 cache.

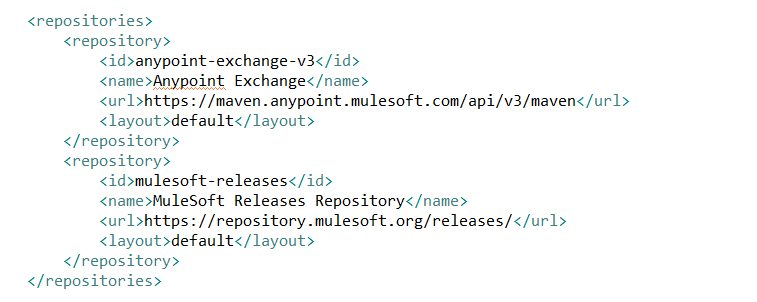

1. repositories

• The <repositories> tag in Maven’s pom.xml is used to define remote locations from where Maven should download dependencies that are not available in the local .m2 repository or the default Maven Central repository.
• In MuleSoft projects, this becomes especially important when you’re working with:
• Mule connectors and modules that are hosted on Anypoint Exchange
• Internal or enterprise-specific artifacts hosted in custom repositories (e.g., Nexus or Artifactory)

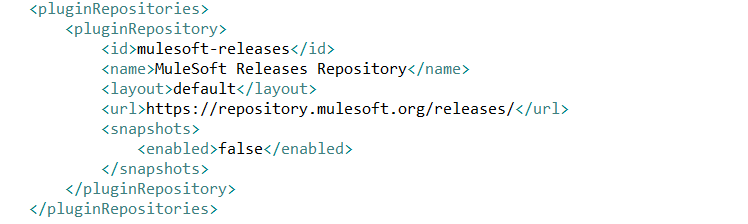

1. plugin Repositories

• The <pluginRepositories> tag in Maven’s pom.xml is used to define remote repositories where Maven should look for plugins that are not available in the default Maven Central repository.
• While the <repositories> tag is used to resolve project dependencies (like libraries and connectors), the <pluginRepositories> tag is used specifically to locate build and deployment plugins—such as the Mule Maven Plugin, which is essential for building and deploying MuleSoft applications.

1. distribution Management

• The <distributionManagement> tag in Maven’s pom.xml specifies where your project’s final artifact (like a JAR or deployable ZIP) should be uploaded or deployed after it’s built. This is especially useful in automated CI/CD pipelines and multi-environment deployments.
• In MuleSoft projects, this tag helps define deployment targets such as:
• Remote Maven repositories like Nexus or JFrog Artifactory
• Anypoint Exchange or Runtime Manager
• Internal artifact repositories for enterprise use

What is parent POM?

A Parent POM is a special type of pom.xml that acts as a central configuration file for multiple child projects. It allows you to define common settings—such as plugin versions, dependency versions, repositories, and build configurations—in one place and inherit them across multiple projects or modules.

In large-scale or multi-module projects (like those built with MuleSoft), using a Parent POM helps you enforce consistency, reduce duplication, and streamline maintenance.

Key Benefits of Using a Parent POM:

1. Centralized Configuration – Defines shared settings like plugins, properties, and repositories in one place.

2. Consistent Dependency Management – Use the dependencyManagement section in the parent POM to declare dependency versions globally. This ensures that all child projects use the same versions, reducing the risk of conflicts.

3. Simplified Maintenance – Update it in the parent, and it applies across all child modules—no need to modify each pom.xml individually.

4. Cleaner and Smaller Child POMs – Child projects only need to declare what’s unique to them. Everything else—versions, plugin settings, repository URLs—can be inherited, making the POMs cleaner and easier to manage.

5. Better Alignment Across Teams – Enforces uniform build setups and coding standards across projects.

DEMONSTRATION:

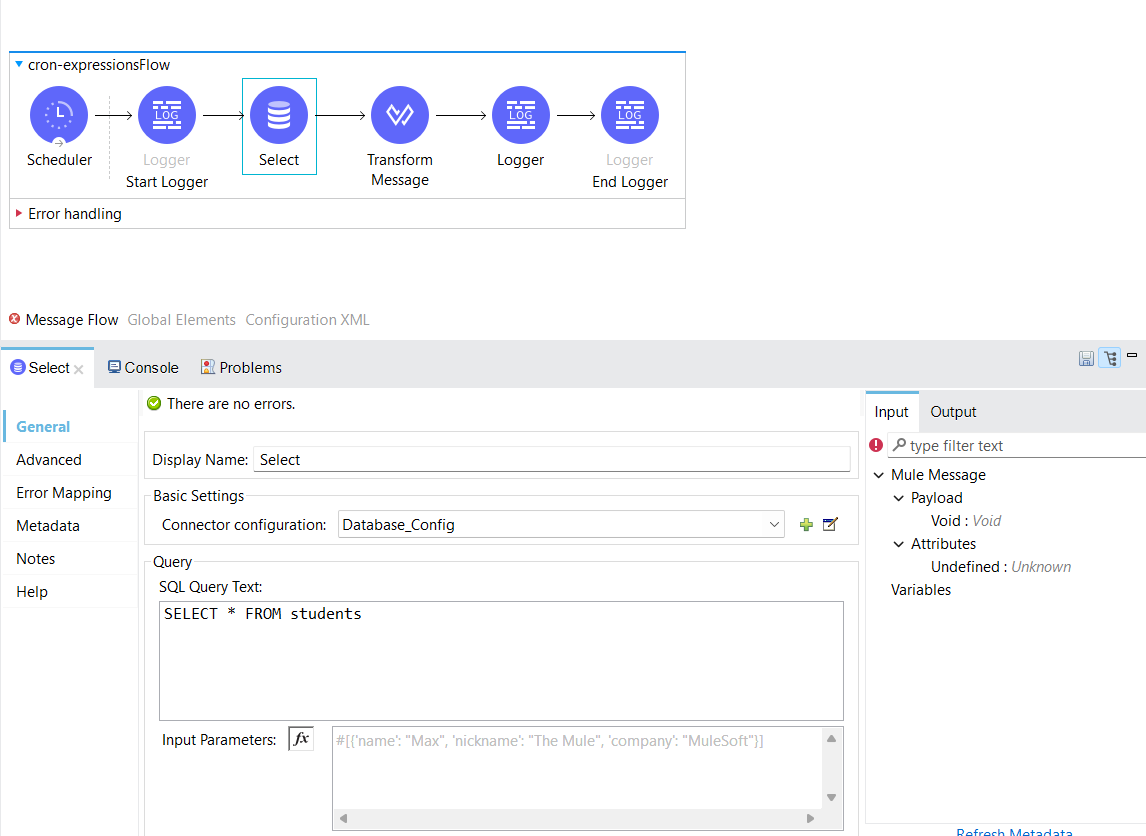

Step1: Launch Anypoint Studio and create a new Mule application aligned with your use case or integration logic. In this example, a Scheduler component is used to trigger every 5 seconds and fetch student details from a database.

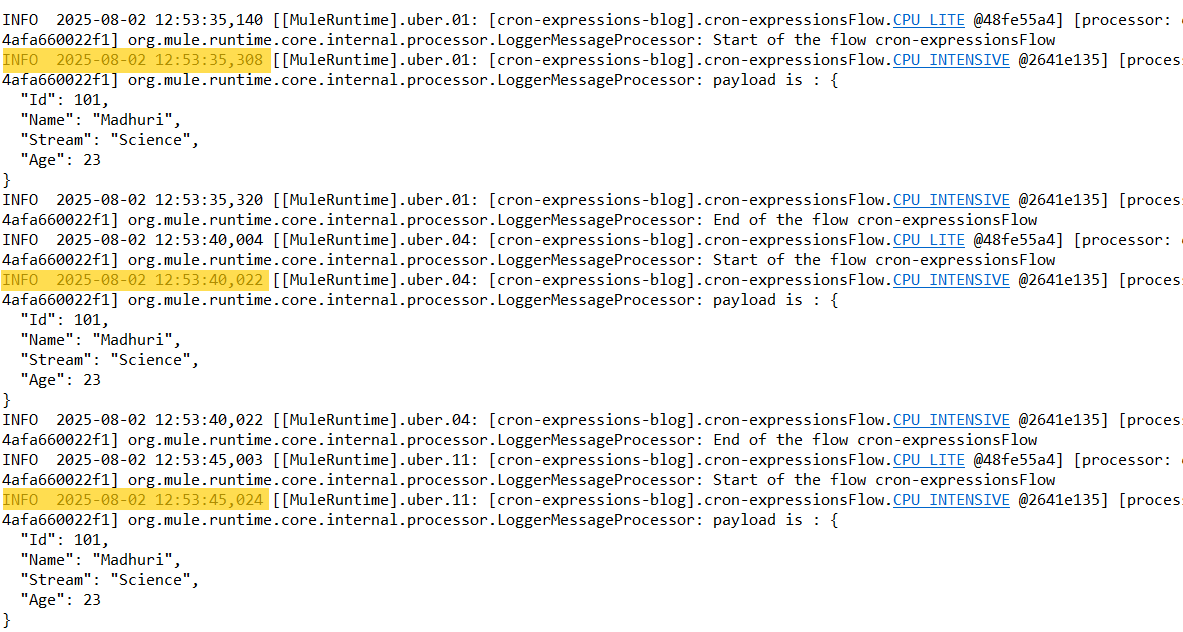

Step2: Once the flow is implemented, deploy the Mule application and confirm that the output matches the intended results by reviewing the runtime logs.

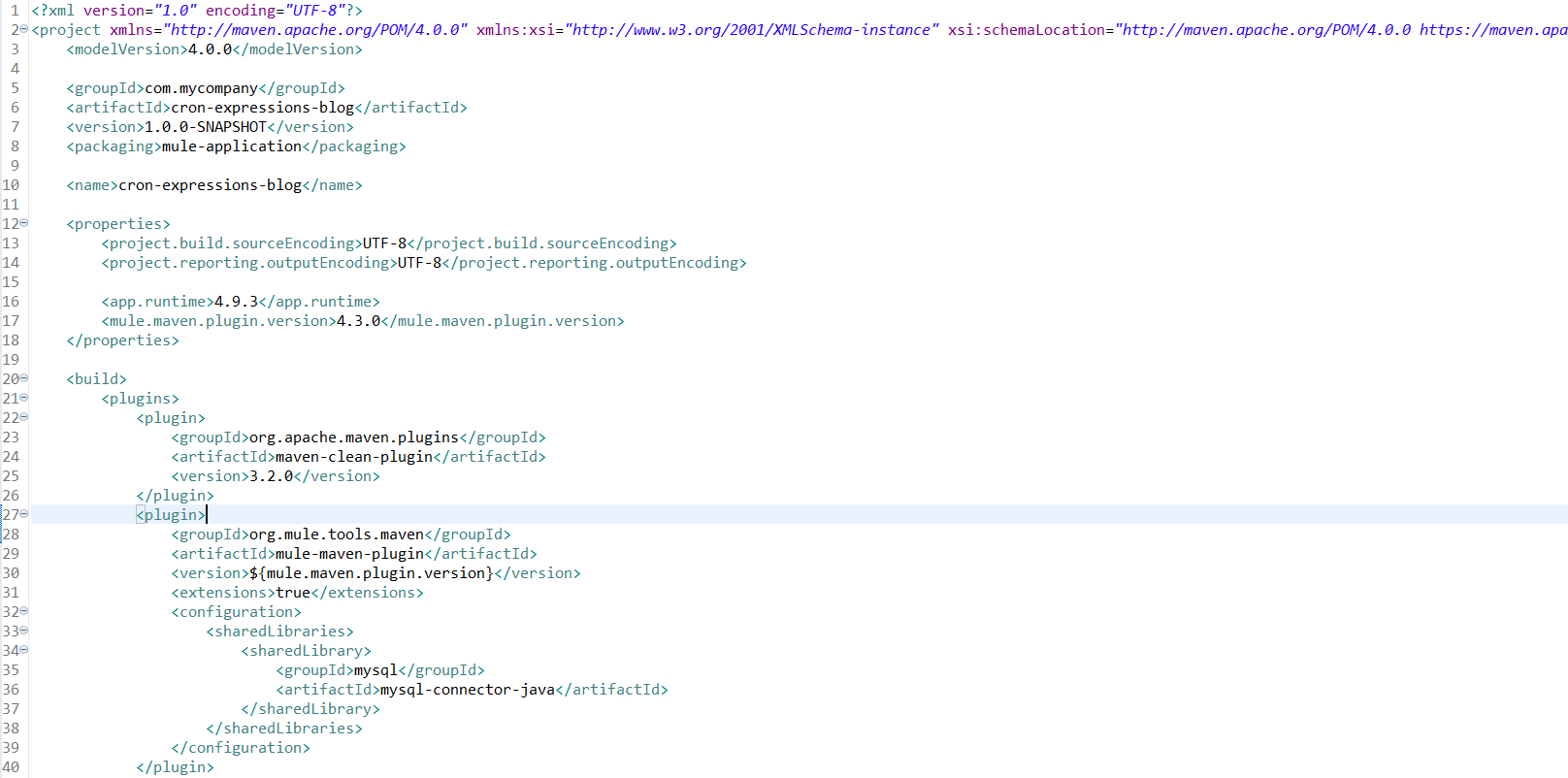

Step3: Navigate to the pom.xml of your Mule application in Anypoint Studio. This file contains the build configuration, dependency management, and plugin details.

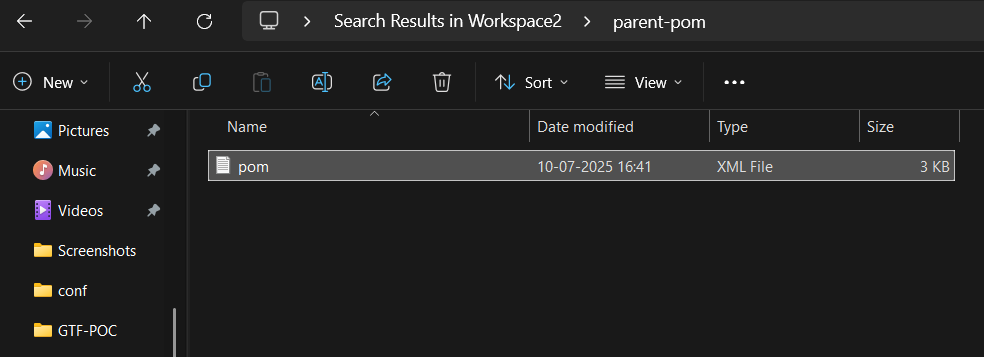

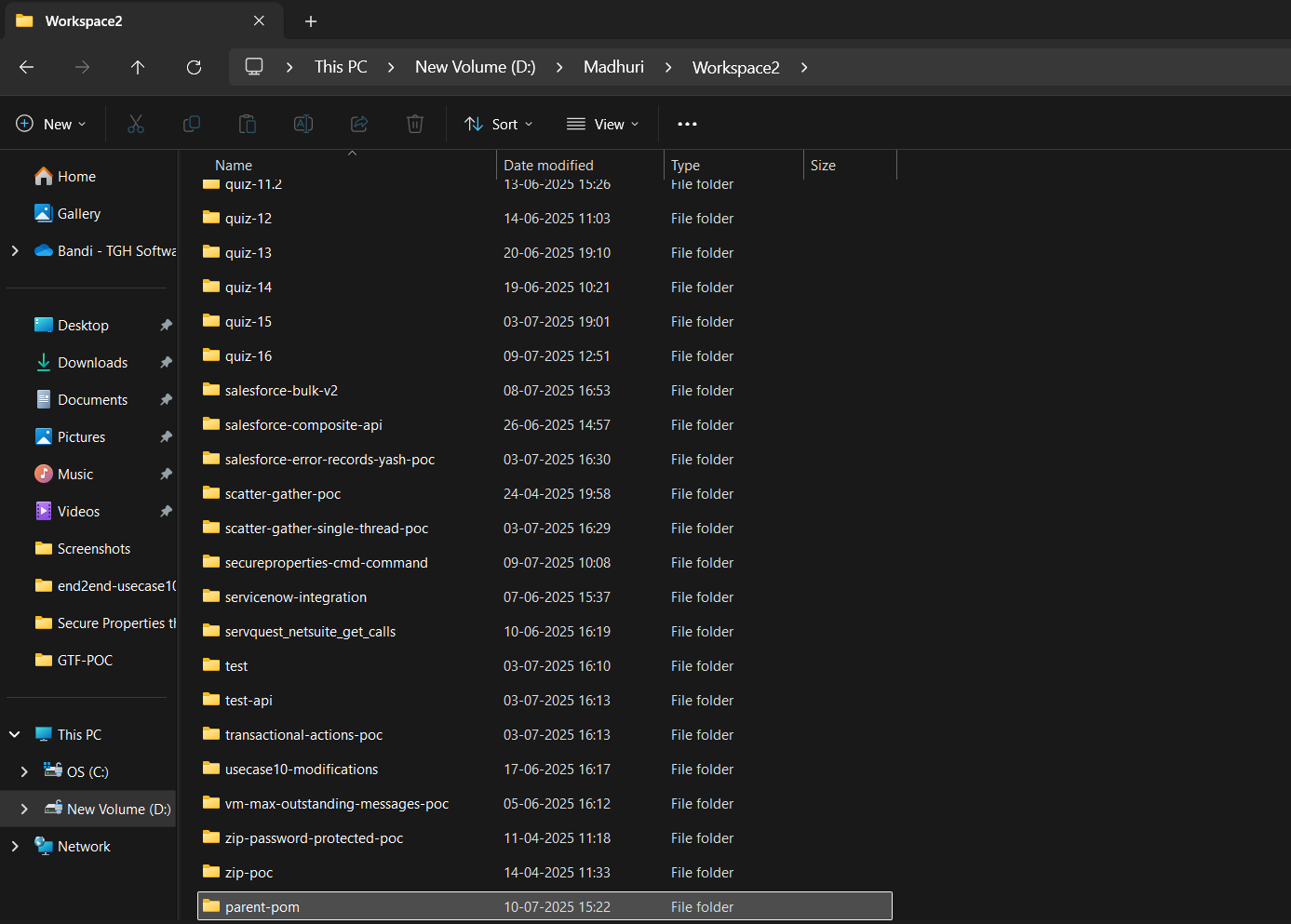

Step4: In your workspace, create a new folder named parent-pom and add a pom.xml file inside it.

Step5: Copy the content of your application’s pom.xml into this new file. Initially, both files will have the same structure.

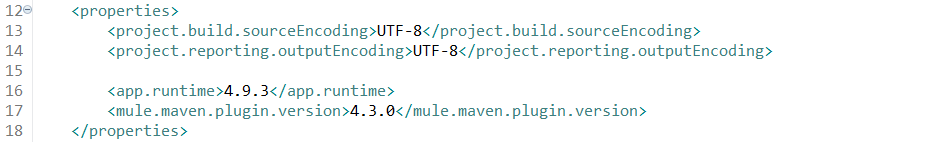

Step6: Coming on to properties in pom.xml, below sourceEncoding, outputEncoding, runtime, maven.plugin.version are not application specific so can be kept in parent pom and removed from application’s pom.xml.

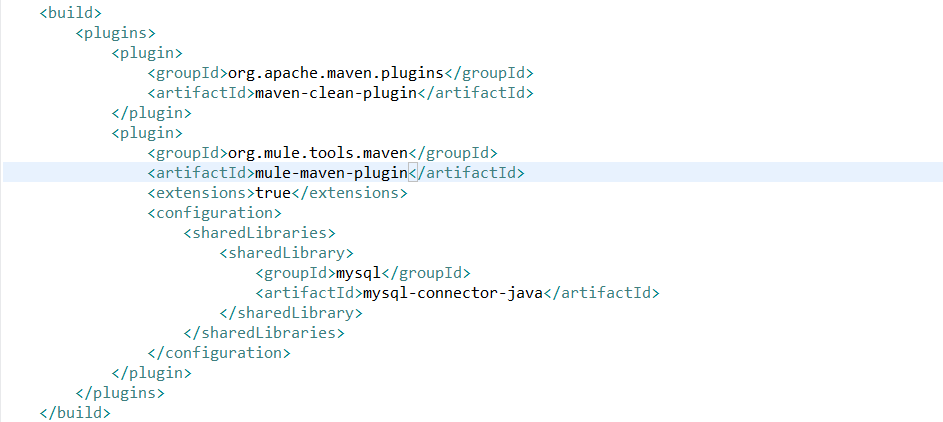

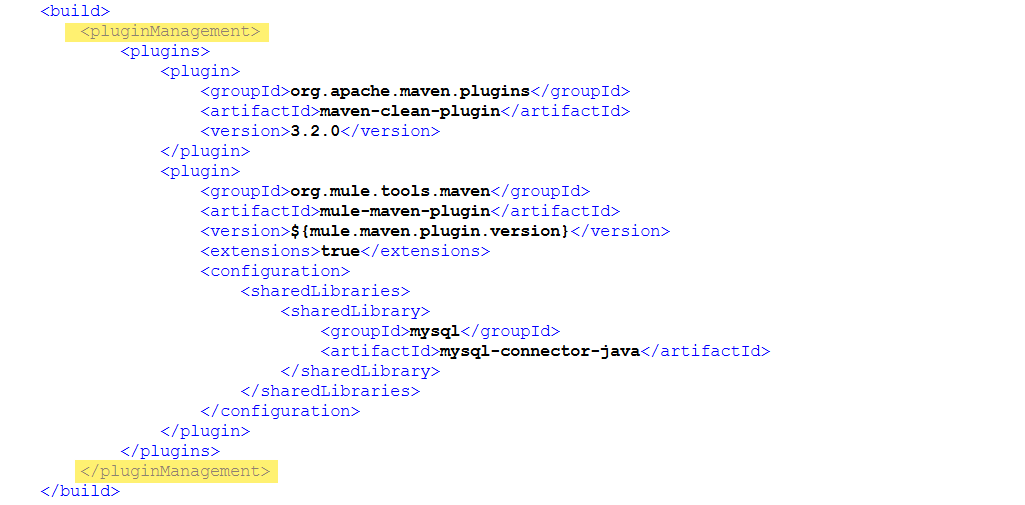

Step7: Wrap the plugin configurations inside the <pluginManagement> section of the parent-pom.xml. Then, in the application’s pom.xml, remove plugin versions to allow them to inherit from the parent POM.

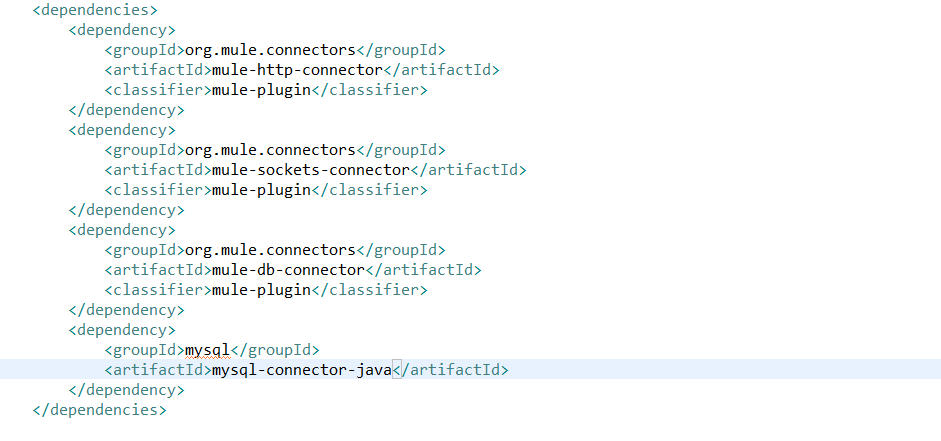

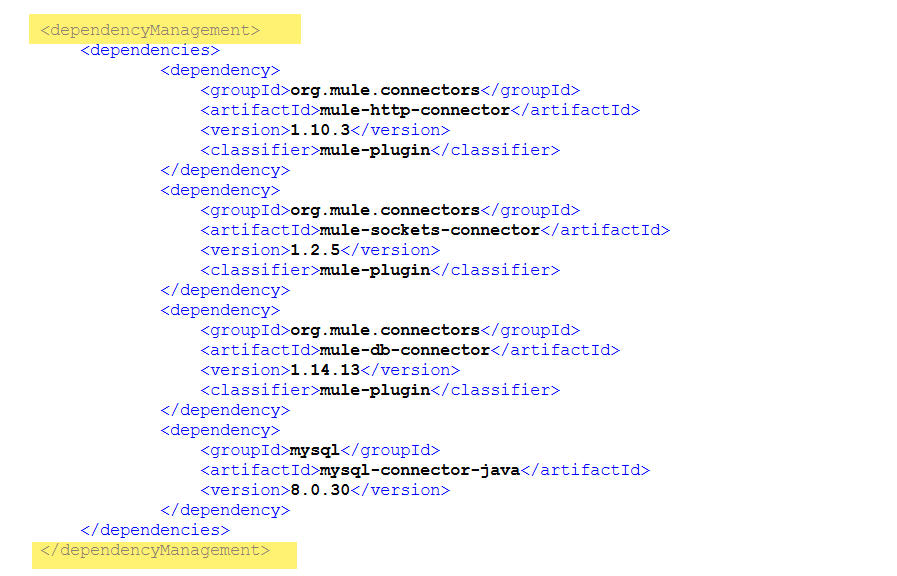

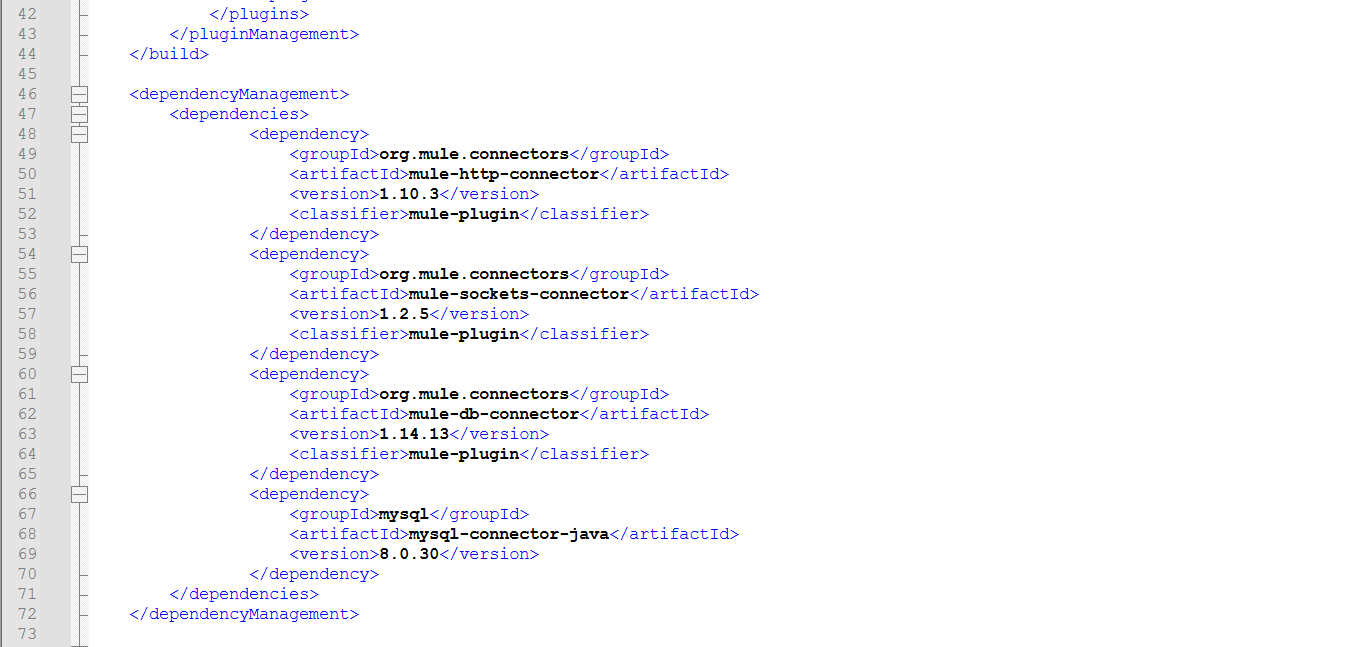

Step8: Wrap all shared dependencies inside the <dependencyManagement> section of the parent-pom.xml. Then, in the application’s pom.xml, remove the version tags from those dependencies so they inherit their versions from the parent POM.

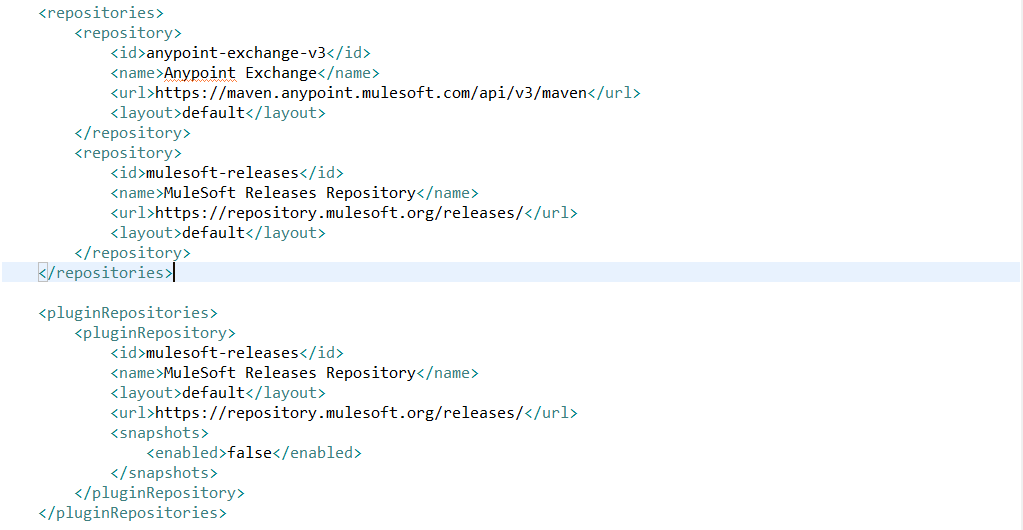

Step9: Define both <repositories> and <pluginRepositories> in the parent-pom.xml.
You can now safely remove them from the application-level pom.xml.

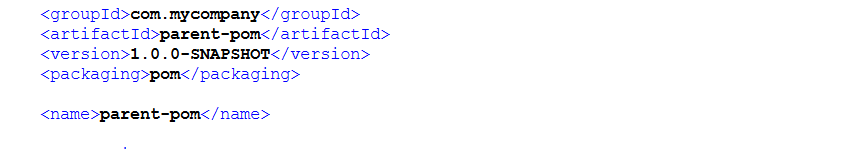

Step10: Since this POM is used only for configuration management and not for deployment, set as below.

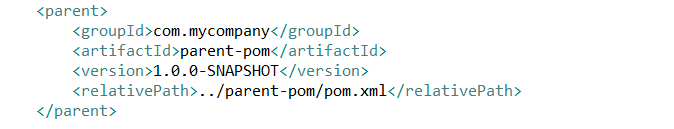

Step11: In the application’s pom.xml, add the <parent> section to reference the parent POM:

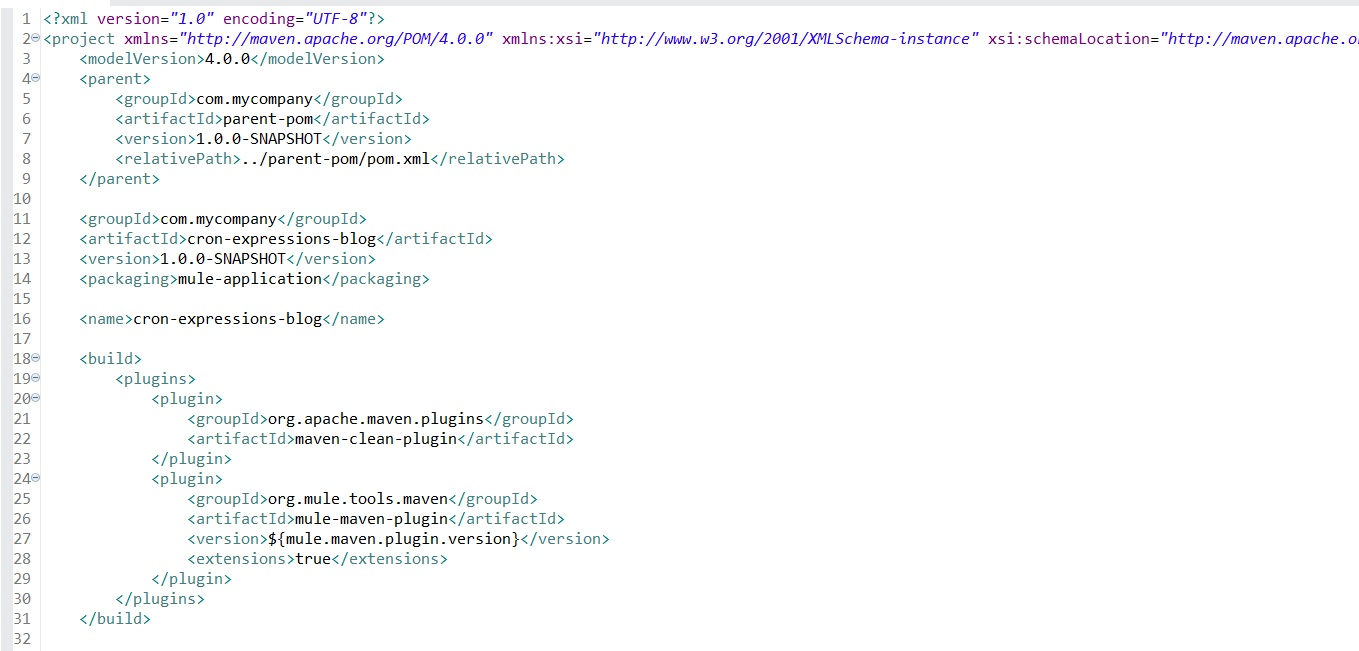

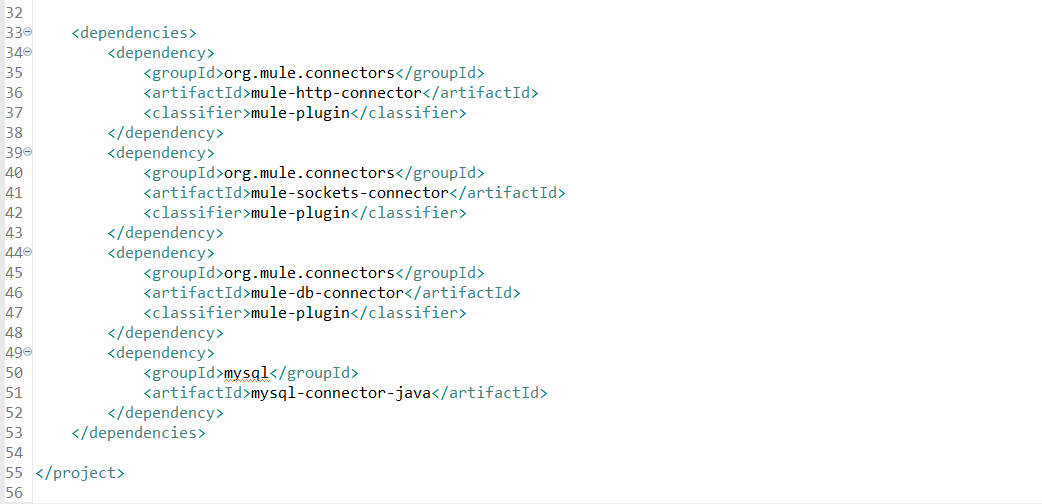

Step12: After cleaning up the application pom.xml, it should now be shorter and only contain app-specific details. All shared configurations are inherited from the parent POM.

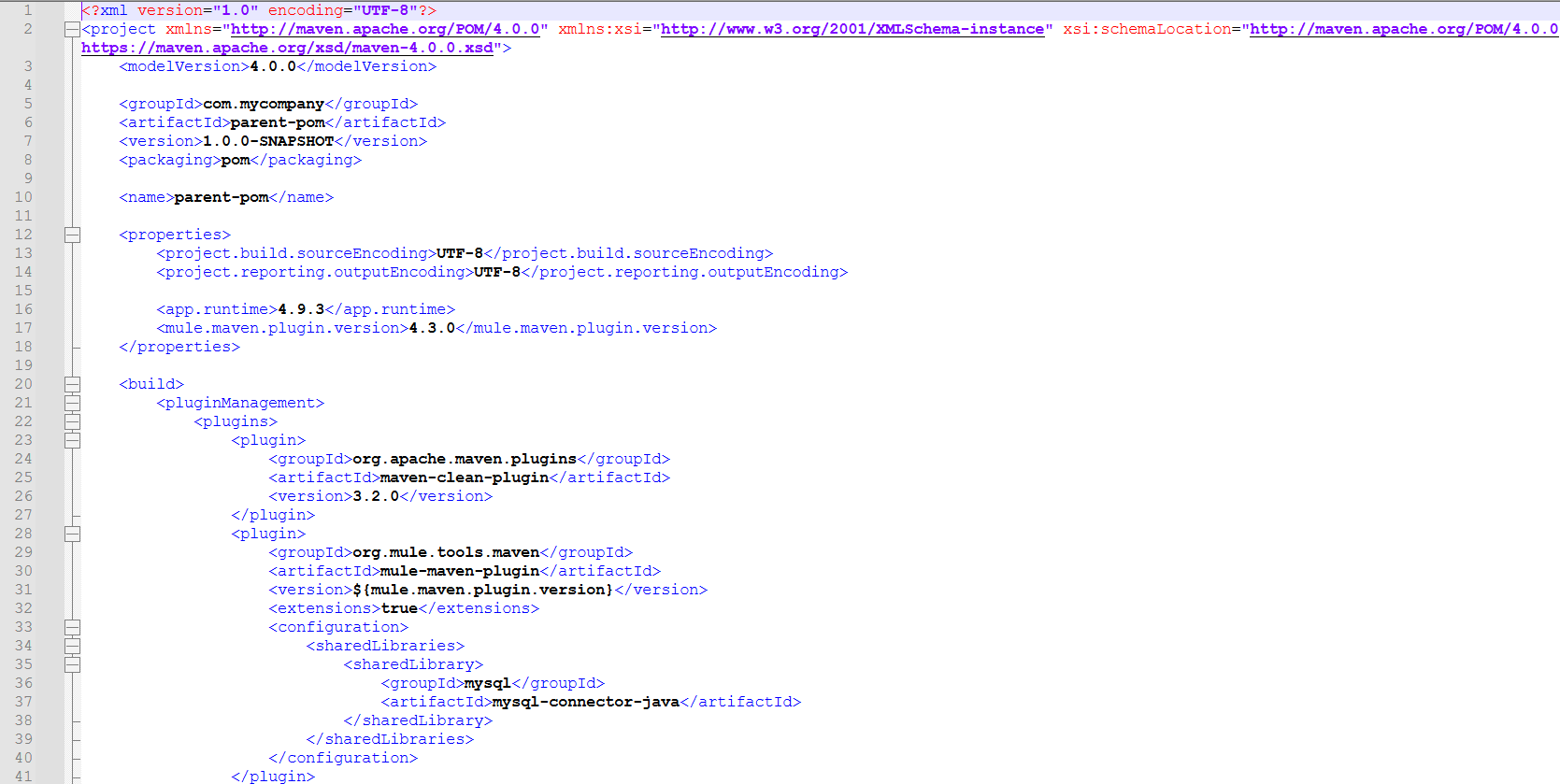

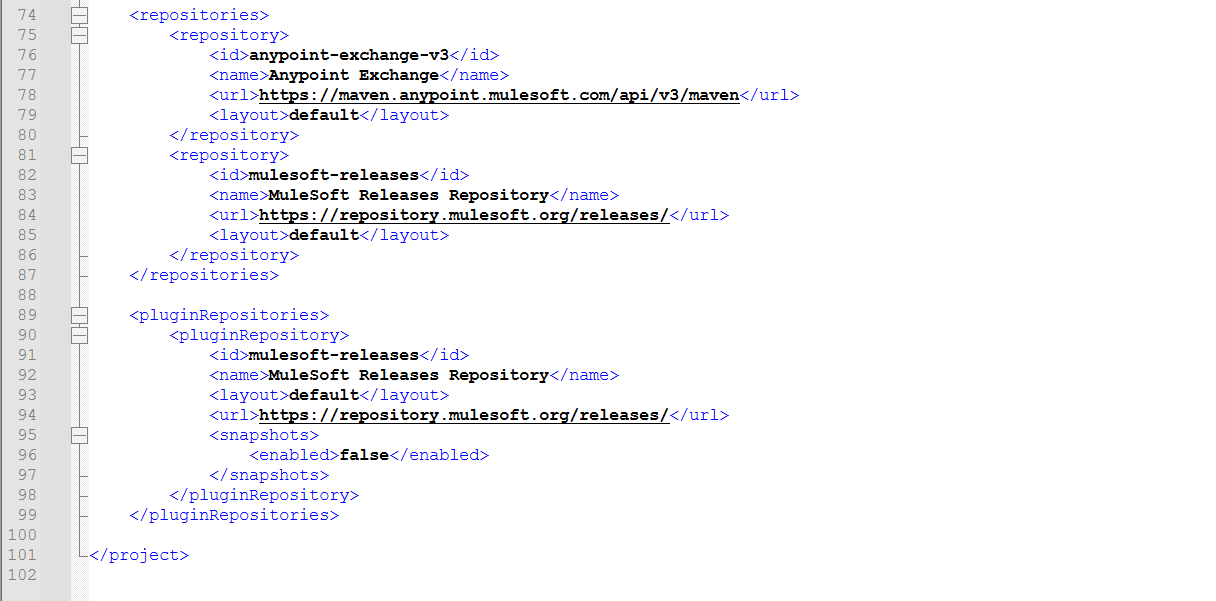

Step13: parent POM.xml post modification would be like below.

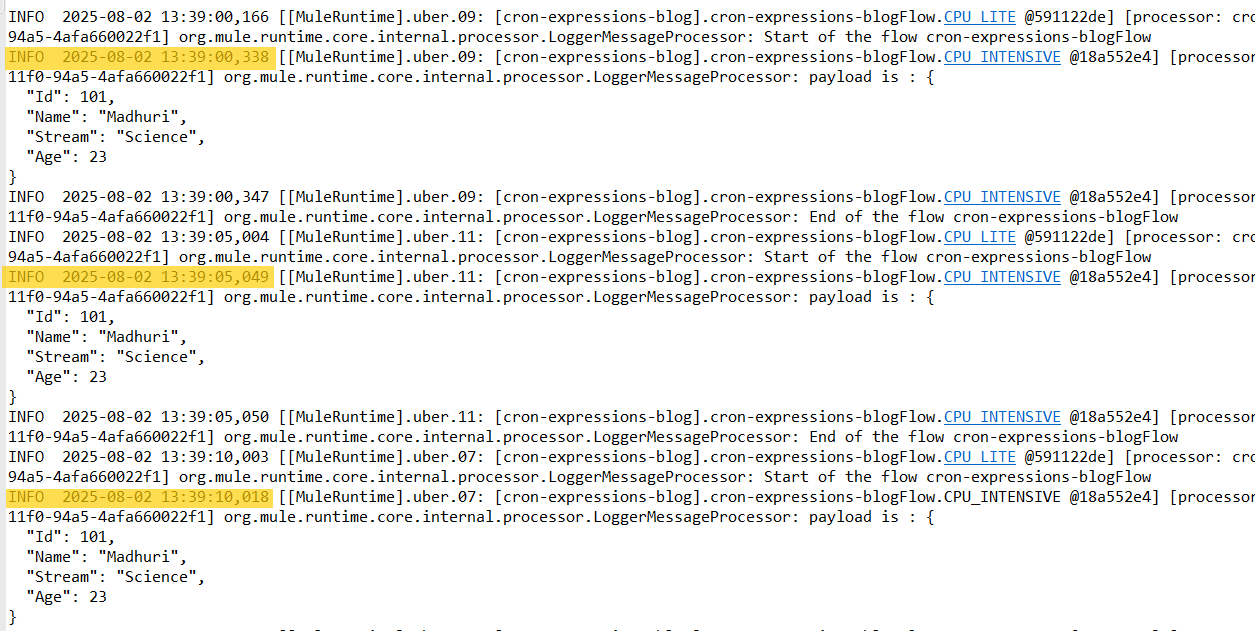

Step14: Deploy your Mule application again and verify that it runs successfully using the configurations inherited from the parent POM. The application should build and run without issues, reflecting the modularized setup.

What is BOM?

• A BOM (Bill of Materials) in Maven is a special type of POM file used to manage and centralize dependency versions across multiple projects. It allows you to declare a consistent set of versions for libraries, connectors, or modules in one place, and then import them wherever needed—without repeating version numbers in each project.
• In MuleSoft, BOMs are especially useful for ensuring that all connectors (like HTTP, DB, JMS, etc.) use runtime-compatible and tested versions, helping you avoid version conflicts and improve stability.
• You include a BOM using the <dependencyManagement> section with the import scope, and it does not pull in the dependencies themselves, just the versions.

Hierarchy of pom.xml, parent POM and BOM:

BOM (POM)

• Used in <dependencyManagement> section
• Imported using scope=”import” in:
  • Parent POM (POM)
    • Shared configuration:
      • Plugins
      • Properties
      • Repositories
      • Can contain its own <dependencyManagement> importing BOM
    • Inherited by:
      • Project POM (Application POM)
        • Project-specific dependencies
        • Application flows and logic
