In this Blog we will create duplicate golden records using API in MDH.

Let get started by logging in the platform:

Go to platform.boomi.com

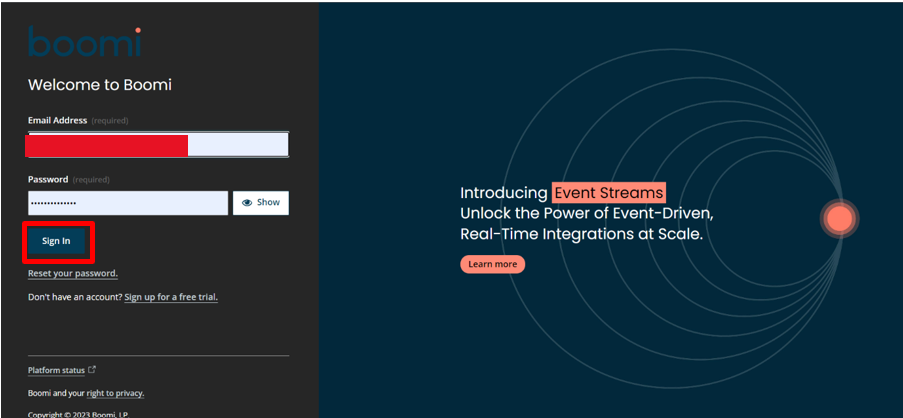

Login by giving your valid credentials (Username and Password).

Creating and Configuring Model

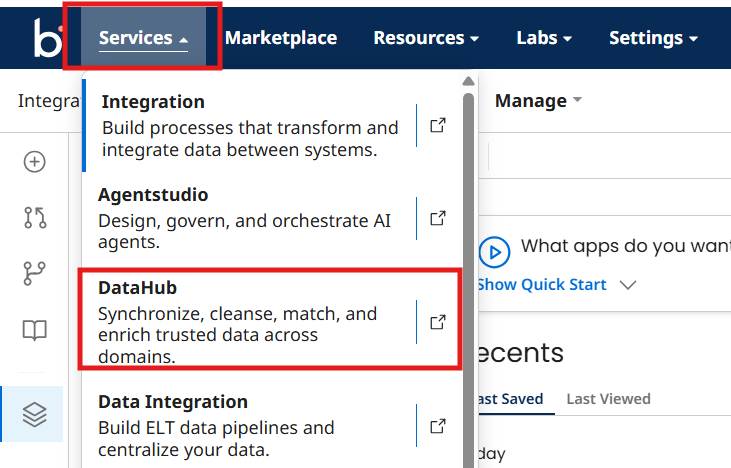

Go to Services tab and navigate to DataHub

Now Data Hub Service will be opened

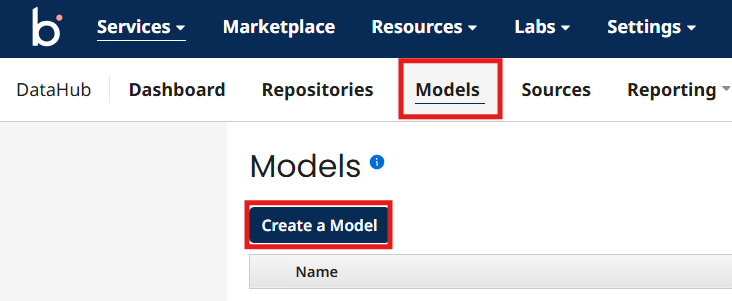

Step 4. Now click on Models tab and create a new model

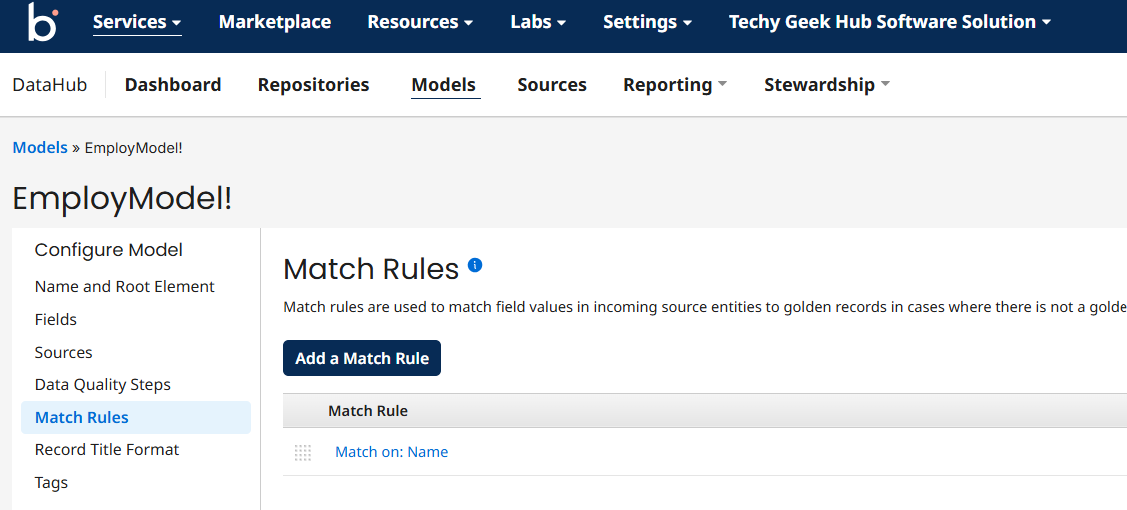

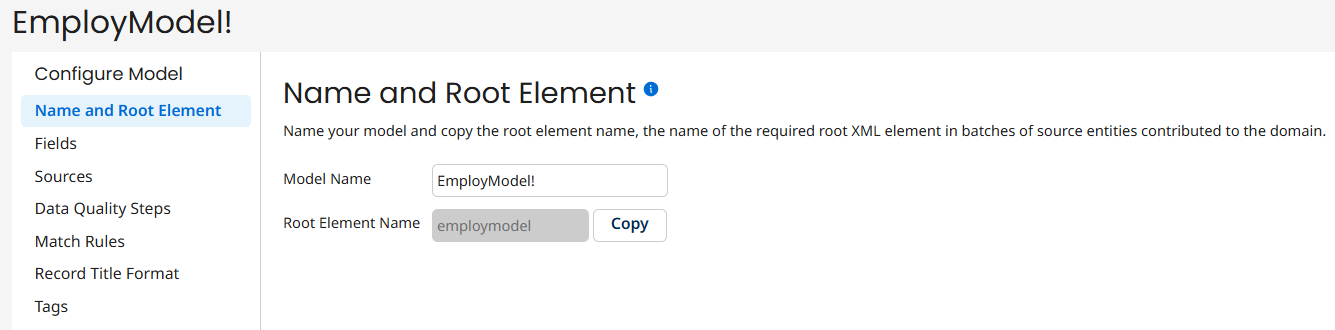

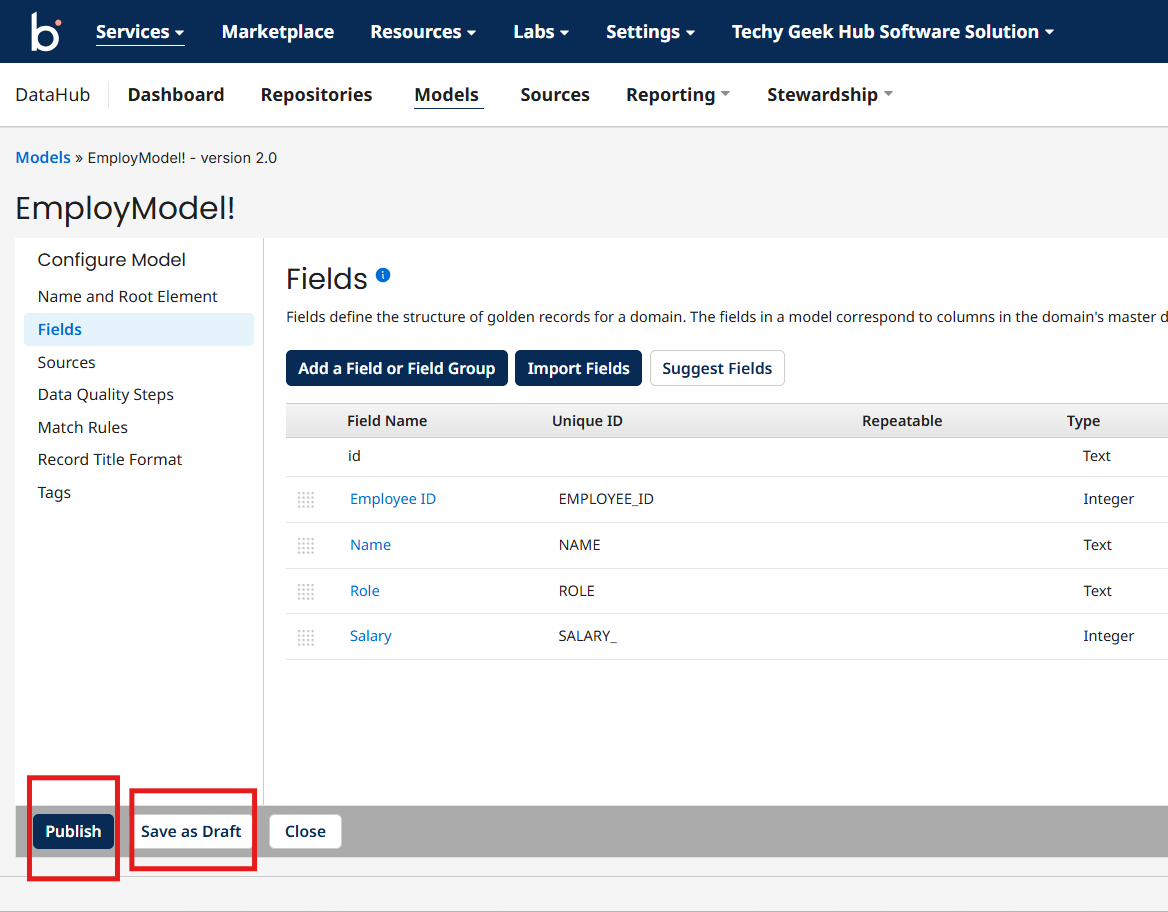

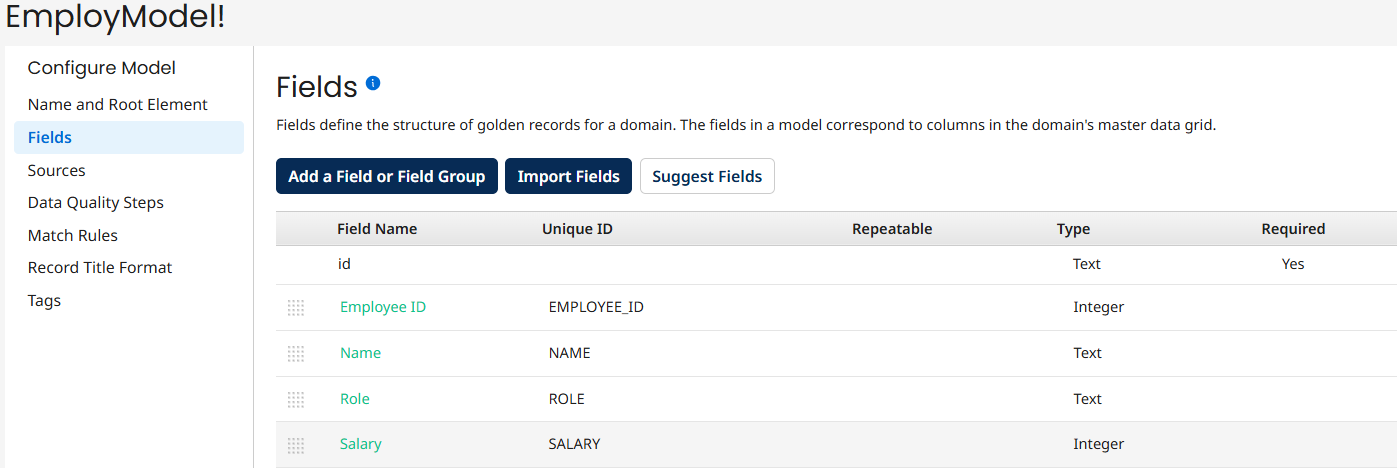

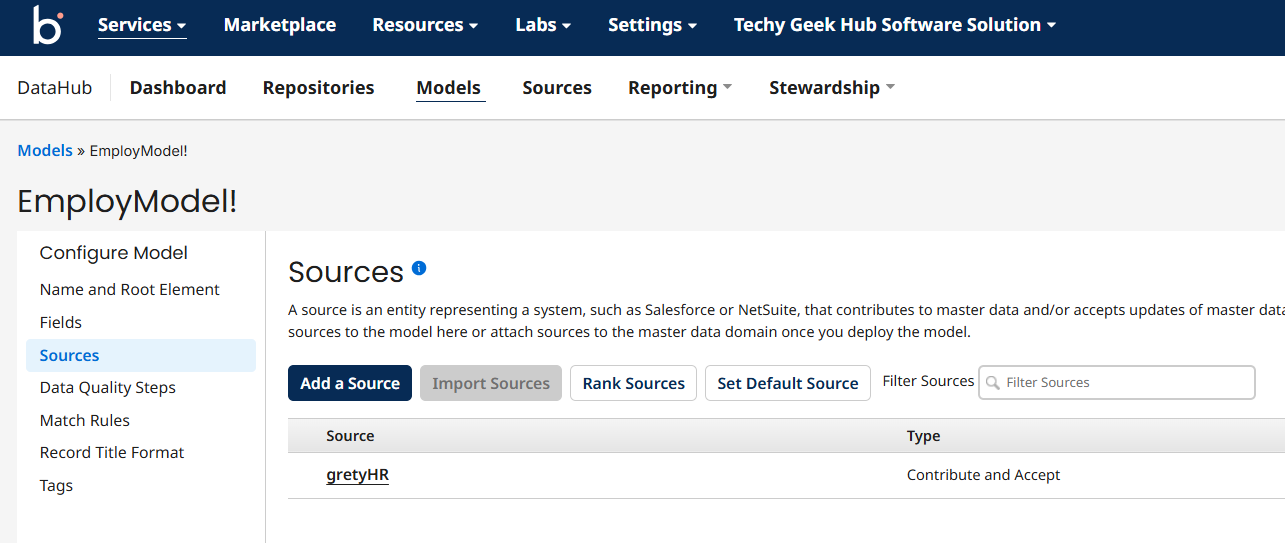

Give Model Name like Employ Model add Source, add fields like Employee ID, Name, Role, and

Salary and configure Match Rule as Name

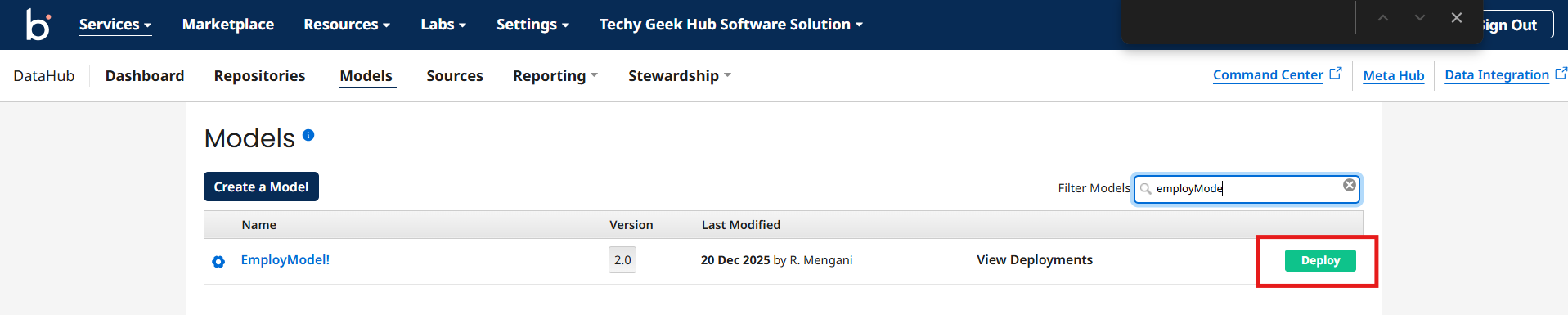

Now you need to publish and deploy the model

Creating Integration process to send data to MDH

Now Click on the Services tab and navigate to Integration service

Now create an process to send records to MDH

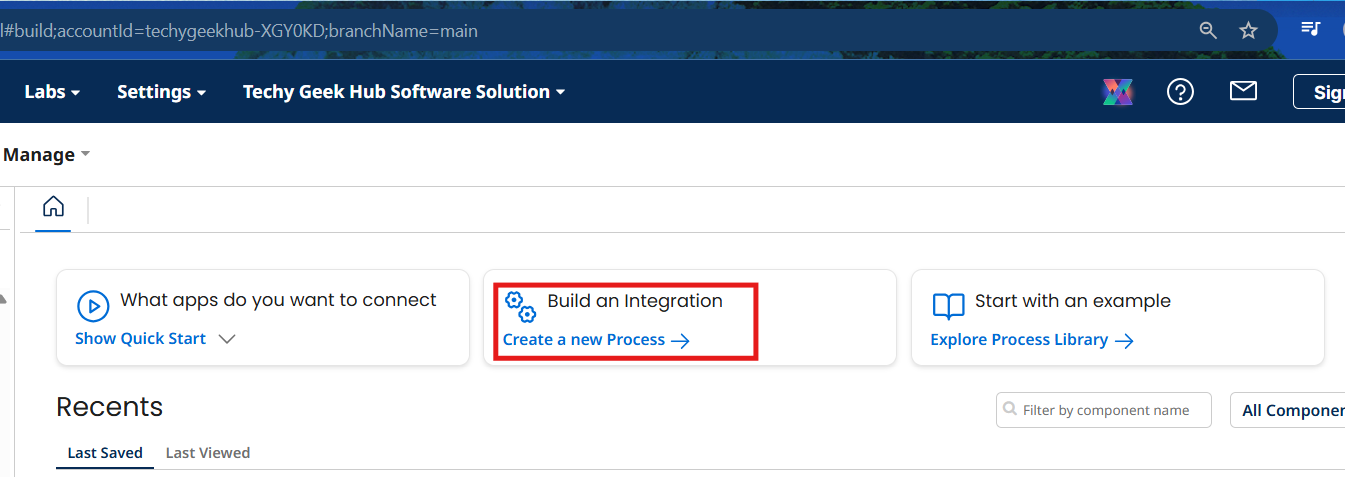

Click on Create a new process

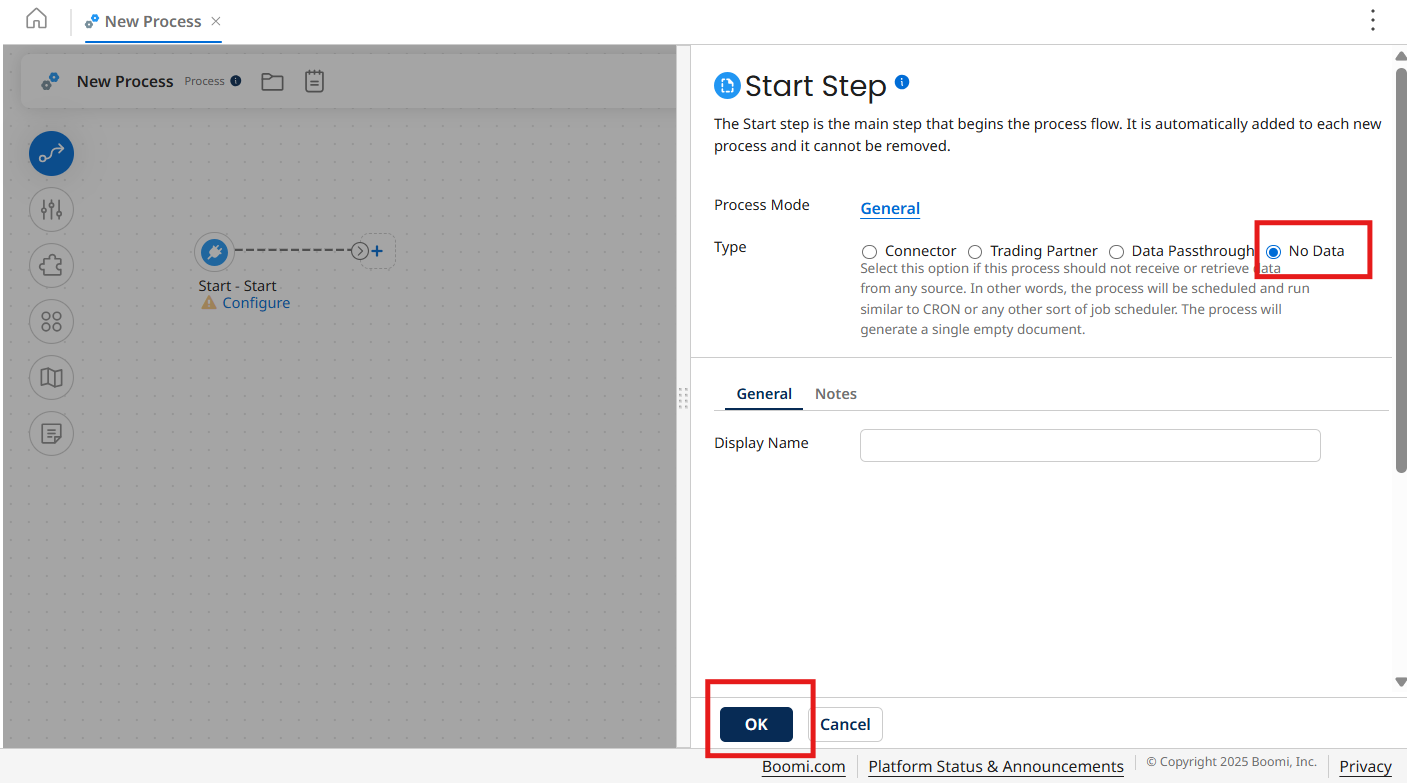

Choose start type as no data and click on ok

Now start shape is configured

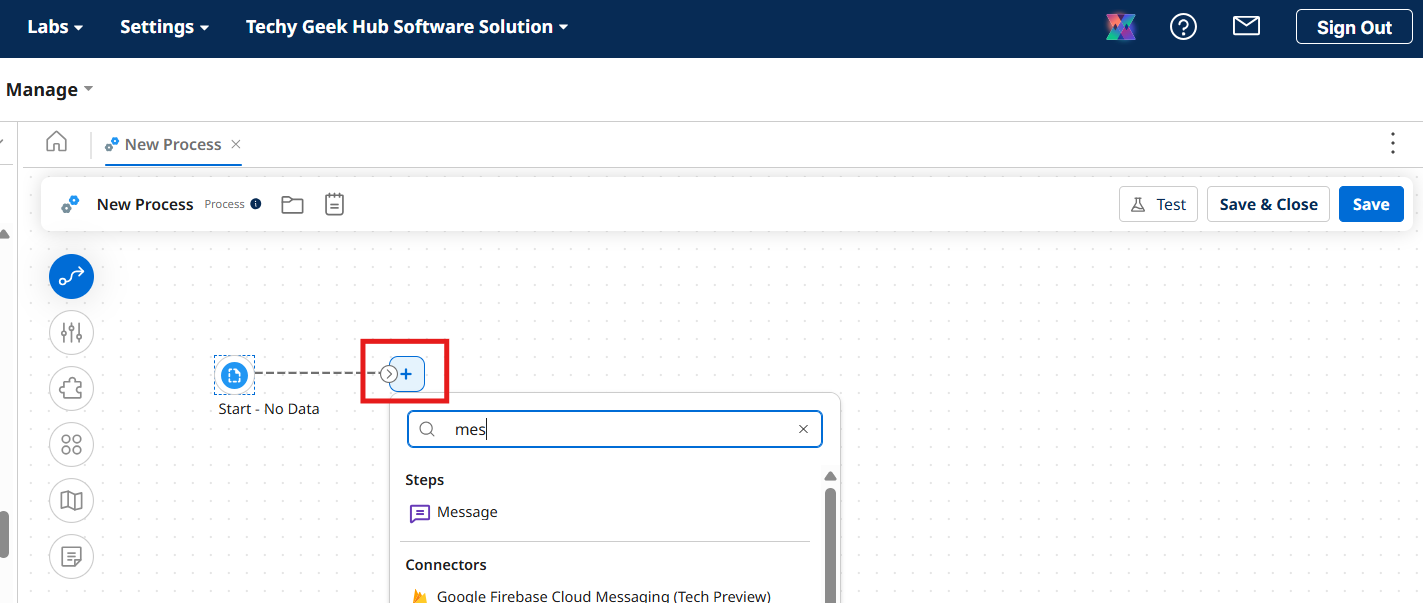

Click on plus icon and search for message shape

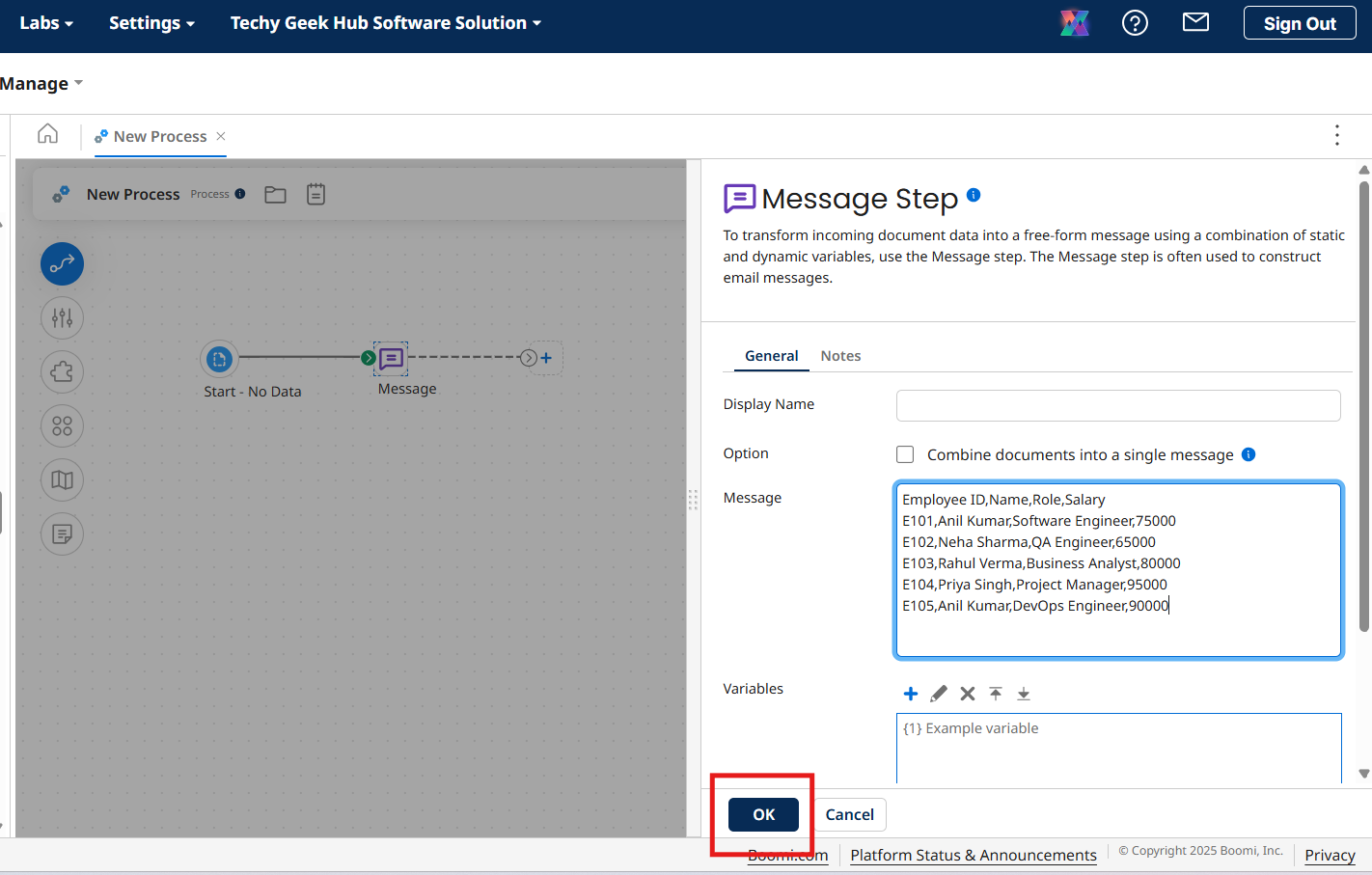

Insert these records in message shape and click on ok

Employee ID,Name,Role,Salary

E101,Anil Kumar,Software Engineer,75000

E102,Neha Sharma,QA Engineer,65000

E103,Rahul Verma,Business Analyst,80000

E104,Priya Singh,Project Manager,95000

E105,Anil Kumar,DevOps Engineer,90000

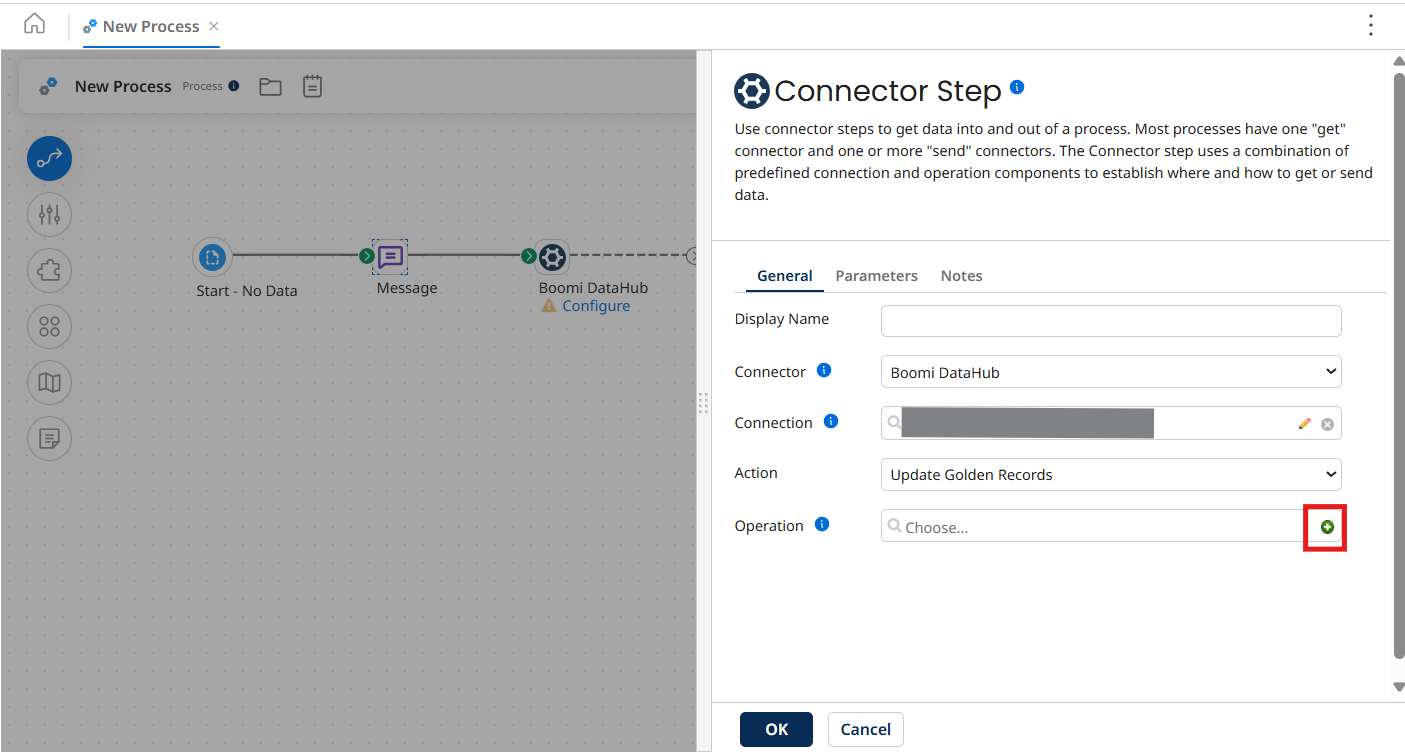

Now click on plus icon and choose data hub connector like before

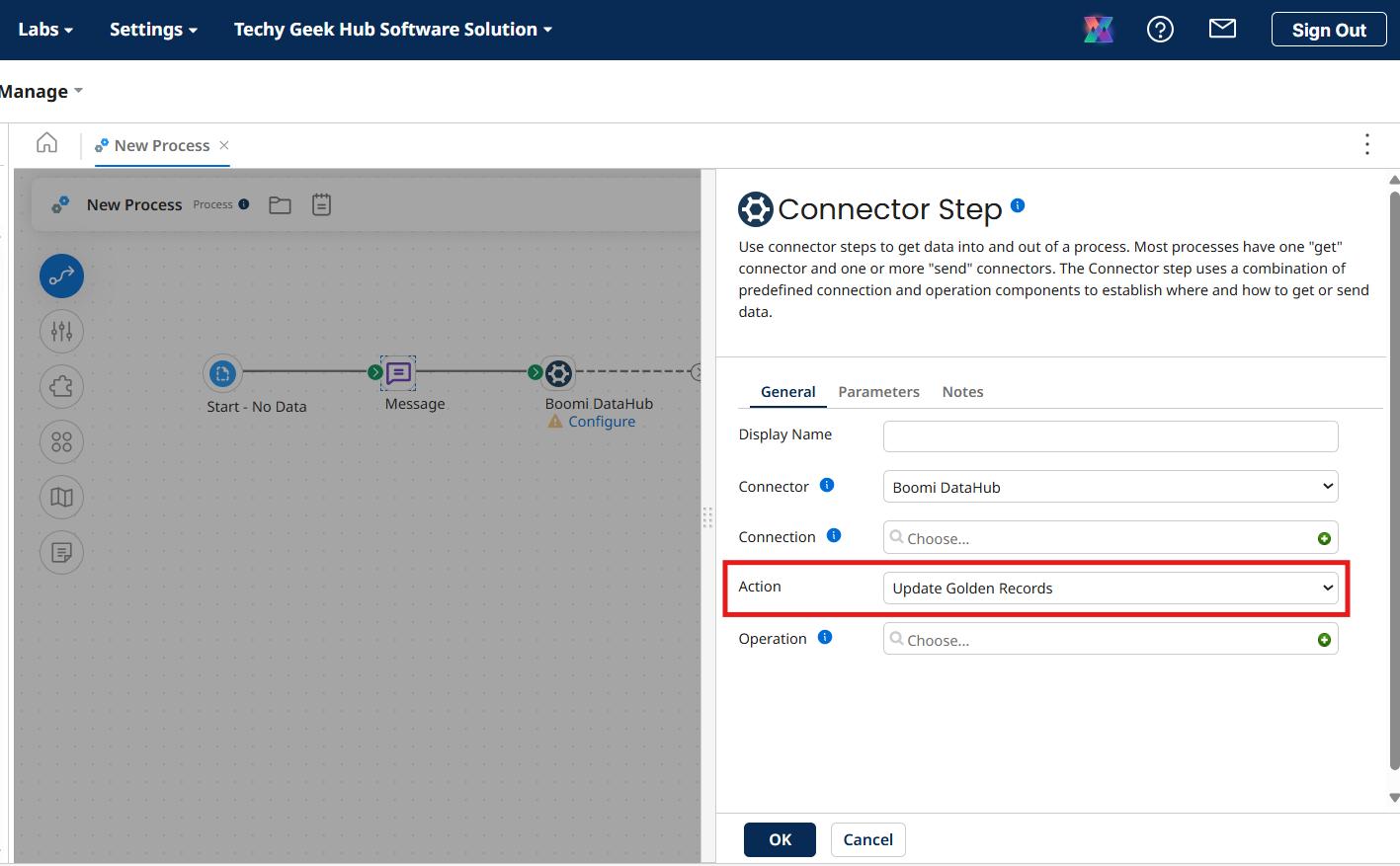

Choose action as update golden records

Creating Boomi Data Hub Connection:

Now click on plus icon for connection

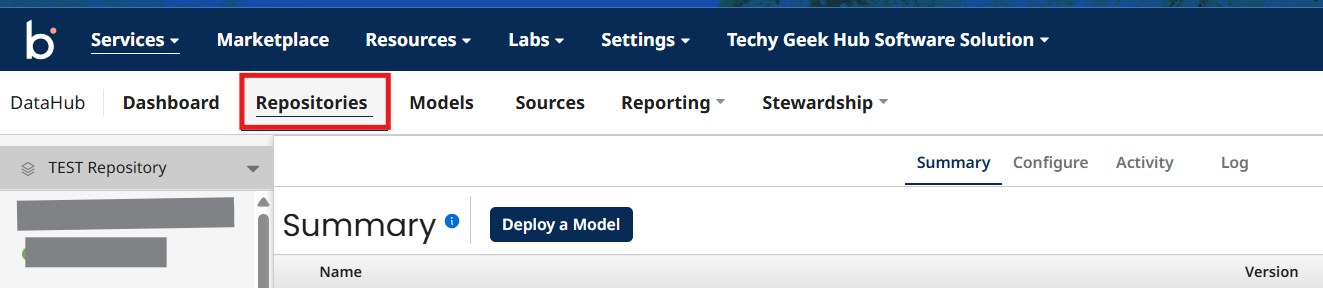

Now navigate to Data Hub service and click on repositories

Repositories will be displayed choose your repository

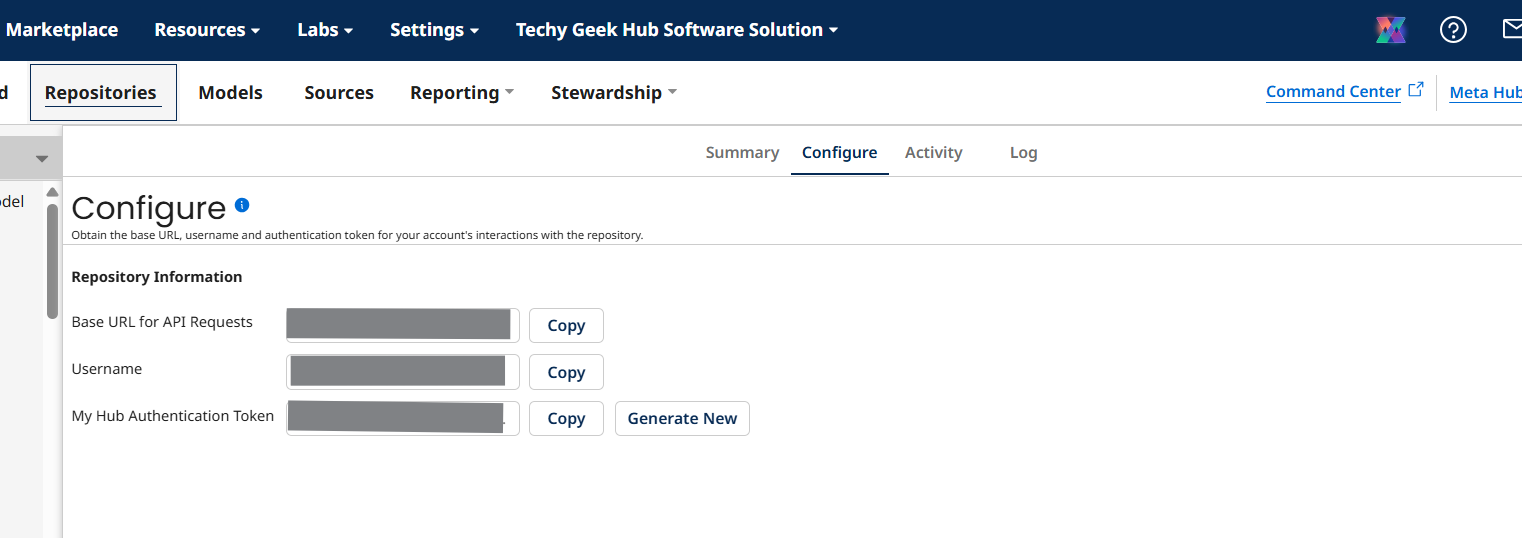

Now click on configure tab copy My Hub Authentication Token, Username, Base URL for API Requests

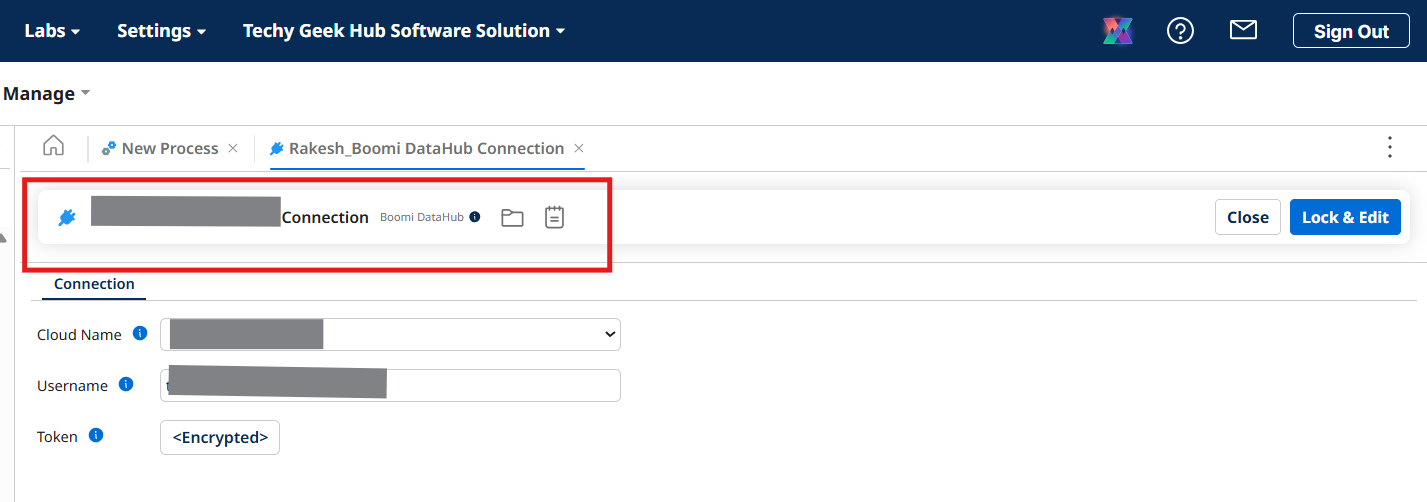

Now go to Data bub Connection component and paste these values and give proper name to connection component

Choose cloud name also from drop down

Click on lock and edit and save and close

Now click on plus icon of operation to create operation component

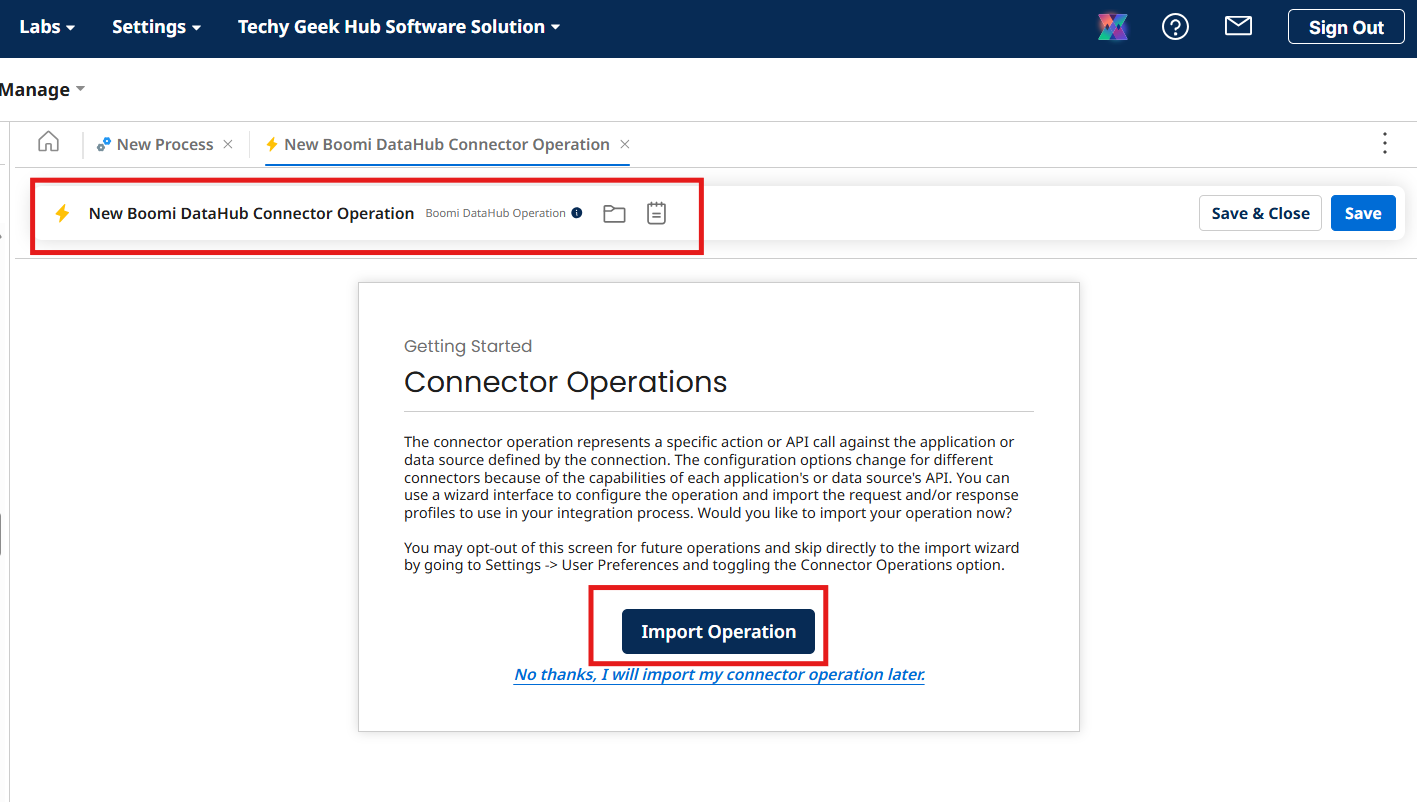

Now give proper name to operation component and click on import operation

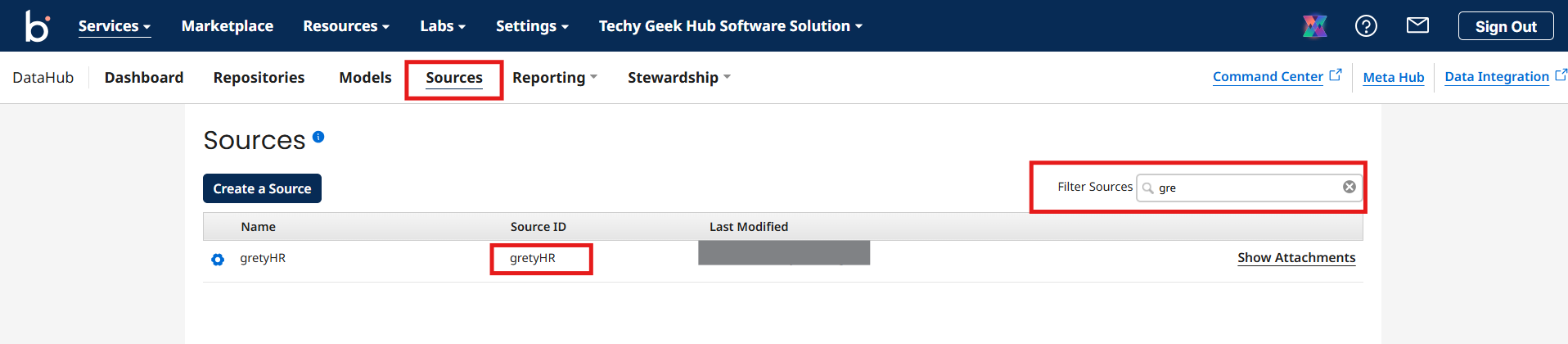

Now Navigate to Data Hub service and search for the source attached to the model and copy the sourceId

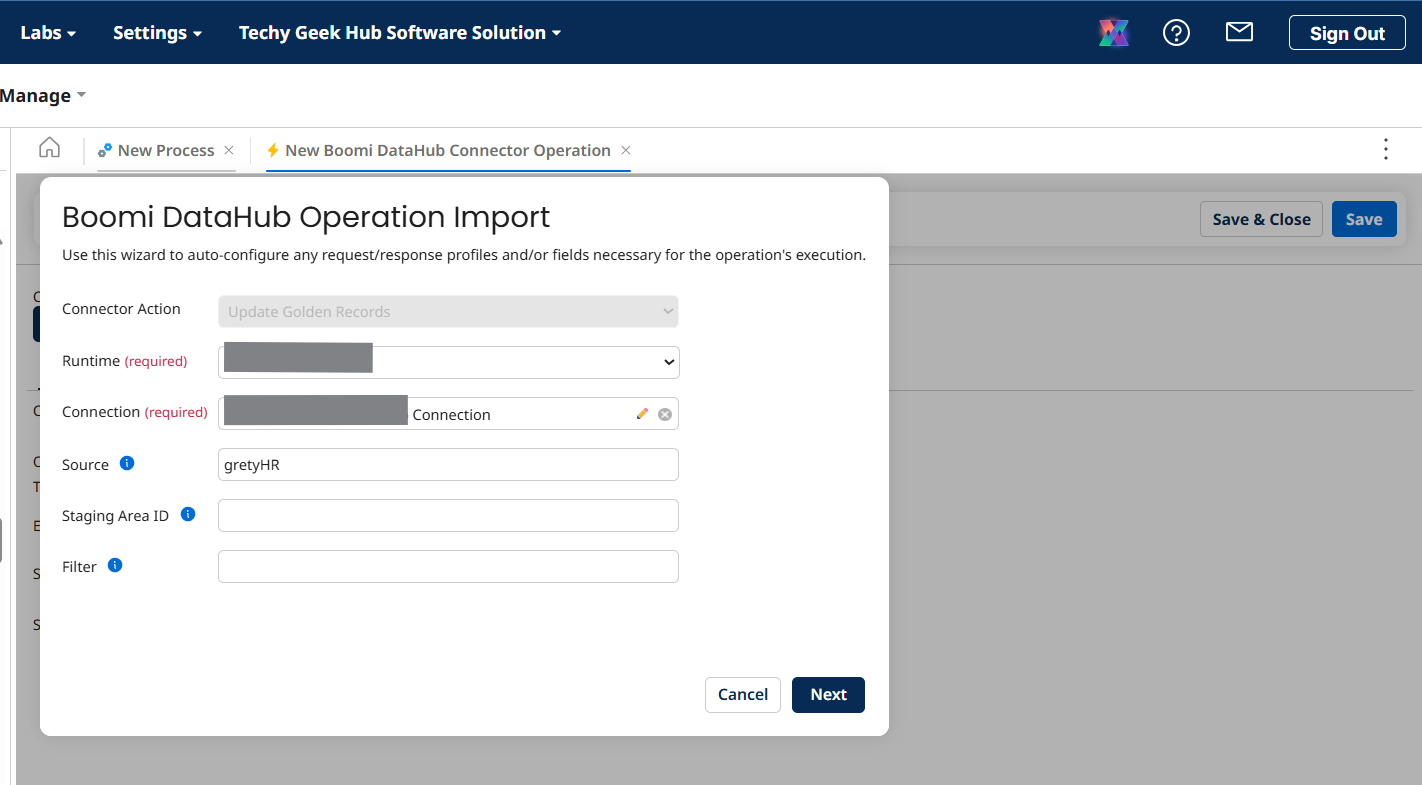

Now go to operation component in Integration service and add choose runtime, connected which was created before and paste the SourceId and leave Staging Id as it is and click on next below

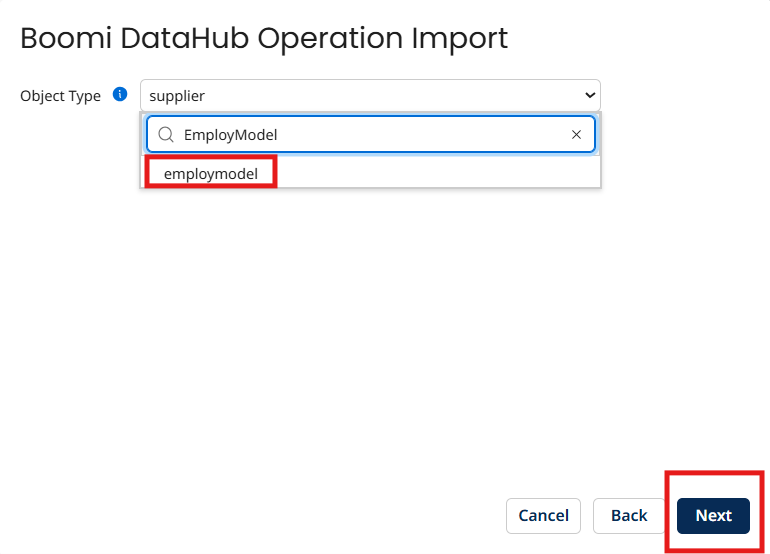

Now choose the Employ Model! which was created from the drop down

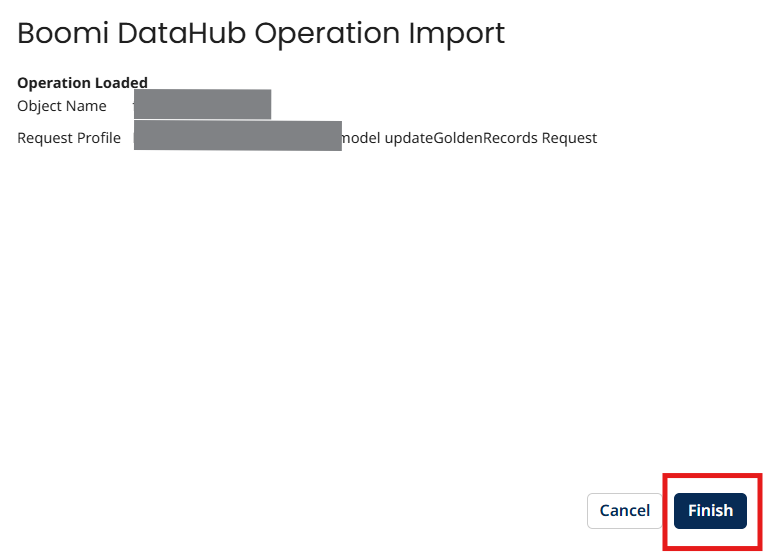

Now request profile for data hub will be created click on finish

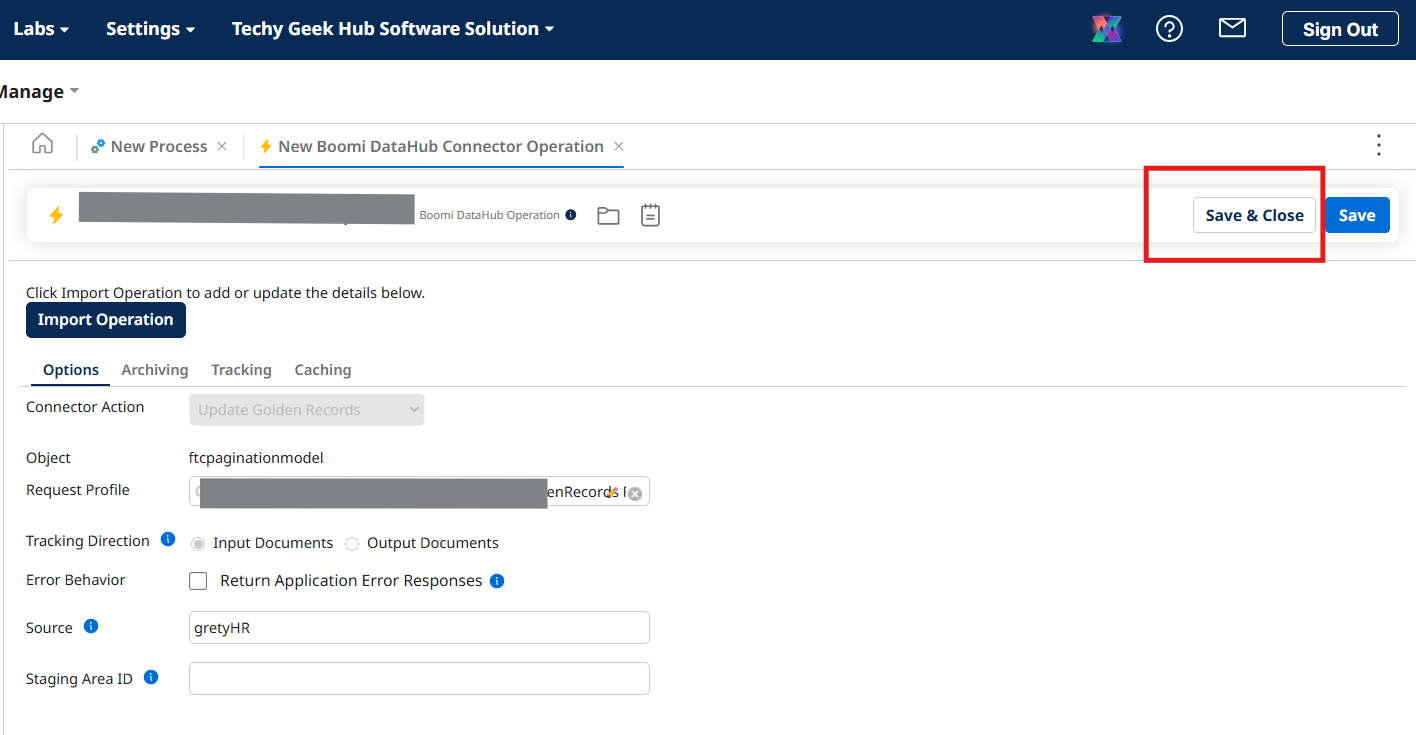

Now click on save and close for operation component

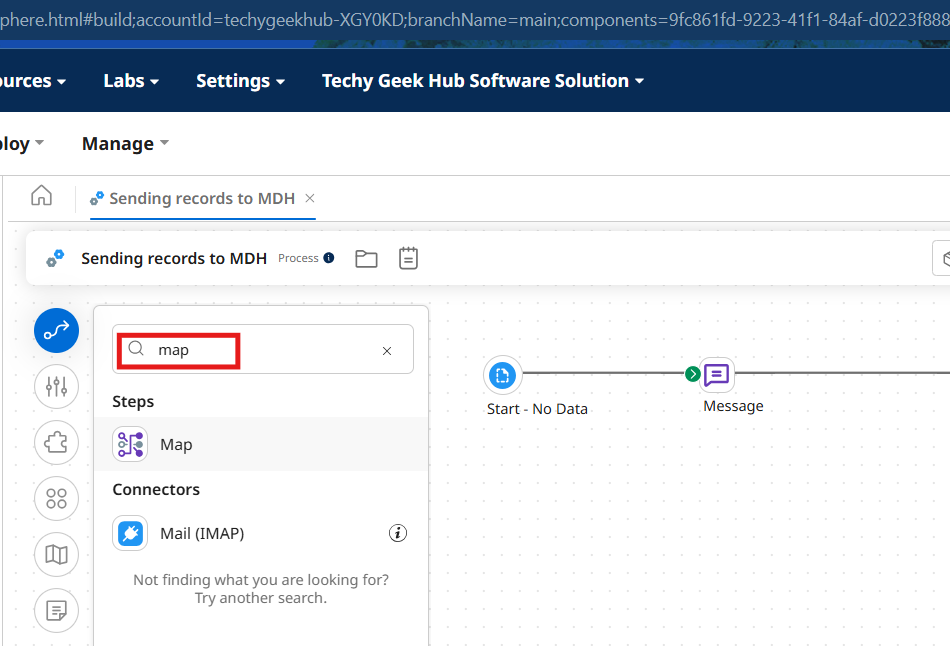

Now drag and drop map shape to the process canvas

Click on configure and plus icon of map

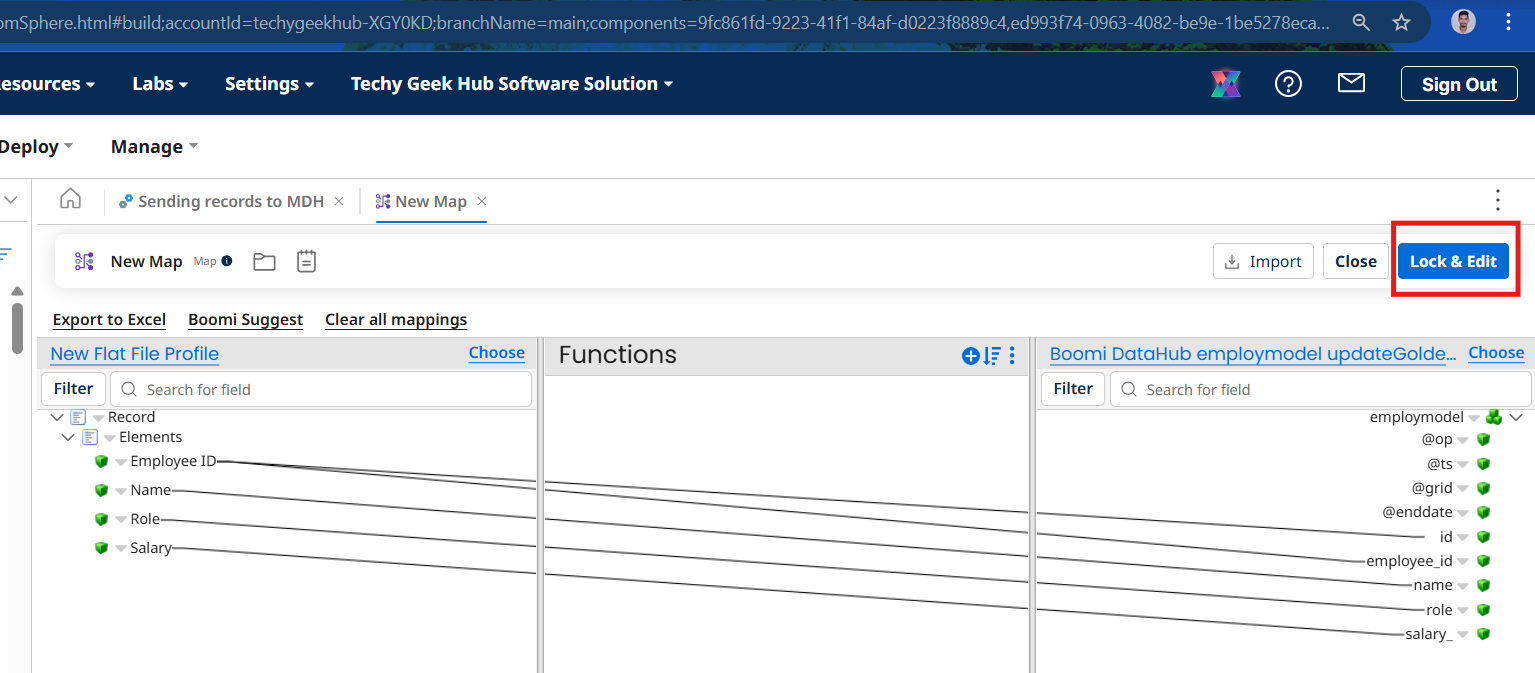

Create a comma separated flat file profile and configure it in the source side of map component and the xml data hub request profile in the target of map component and map the fileds as shown below then click on lock and edit and save close

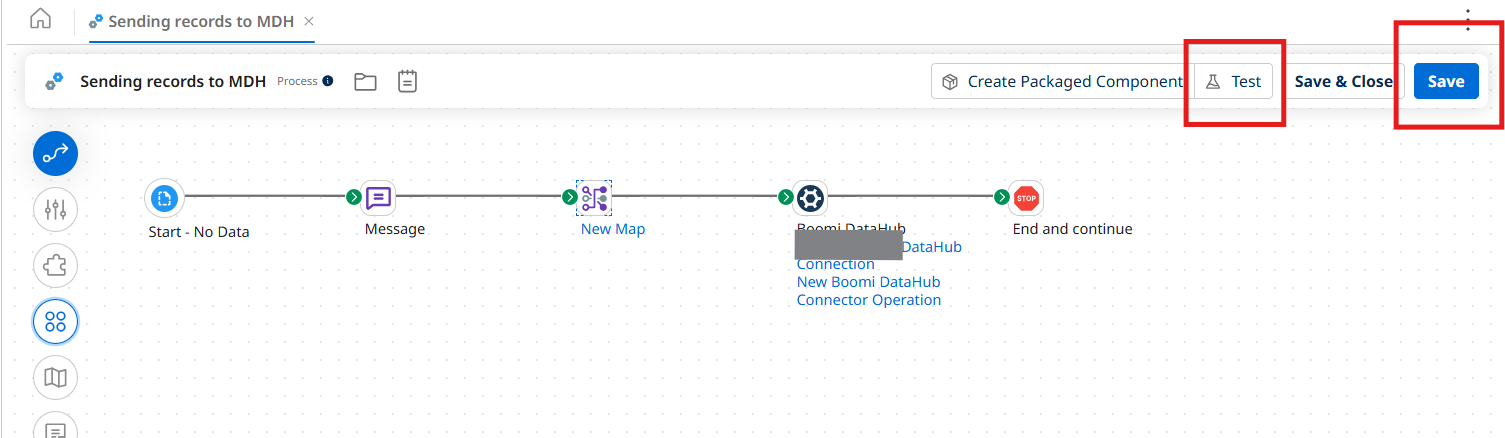

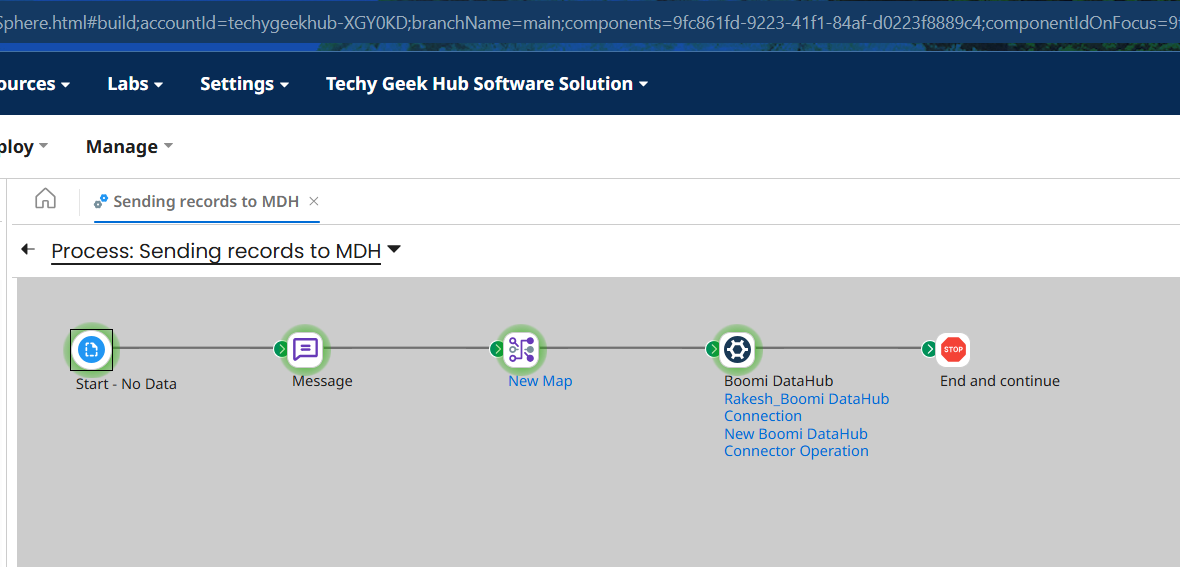

Now arrange the components as shown below click on save and test by choosing your runtime

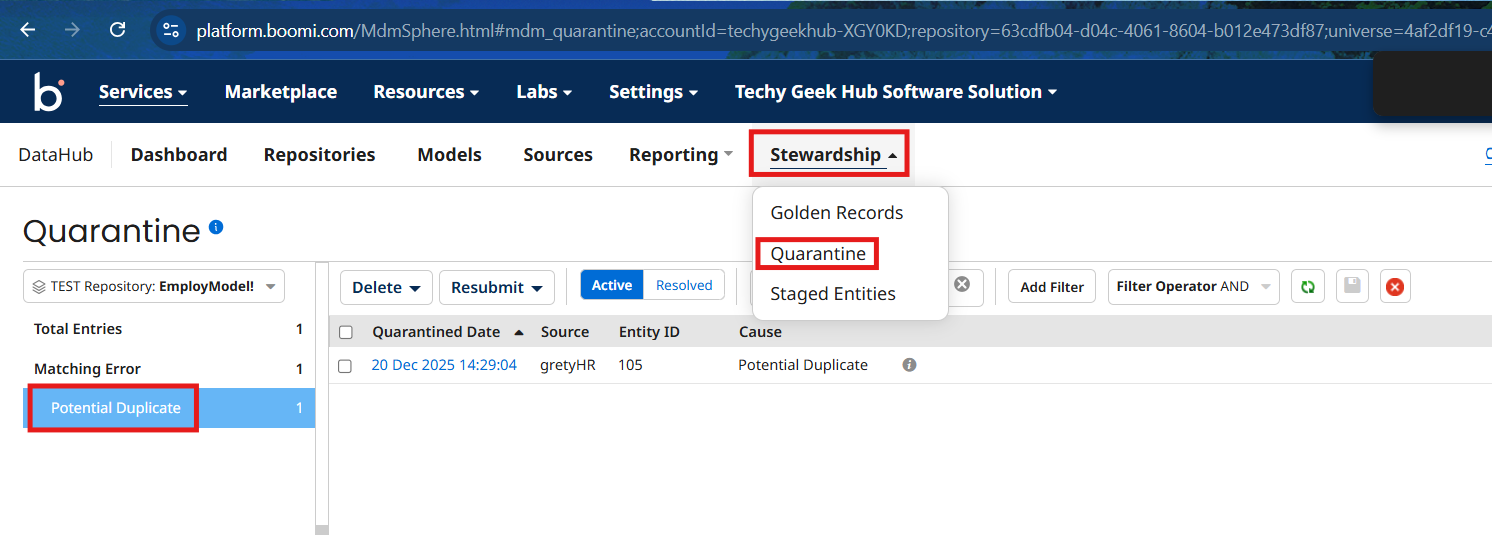

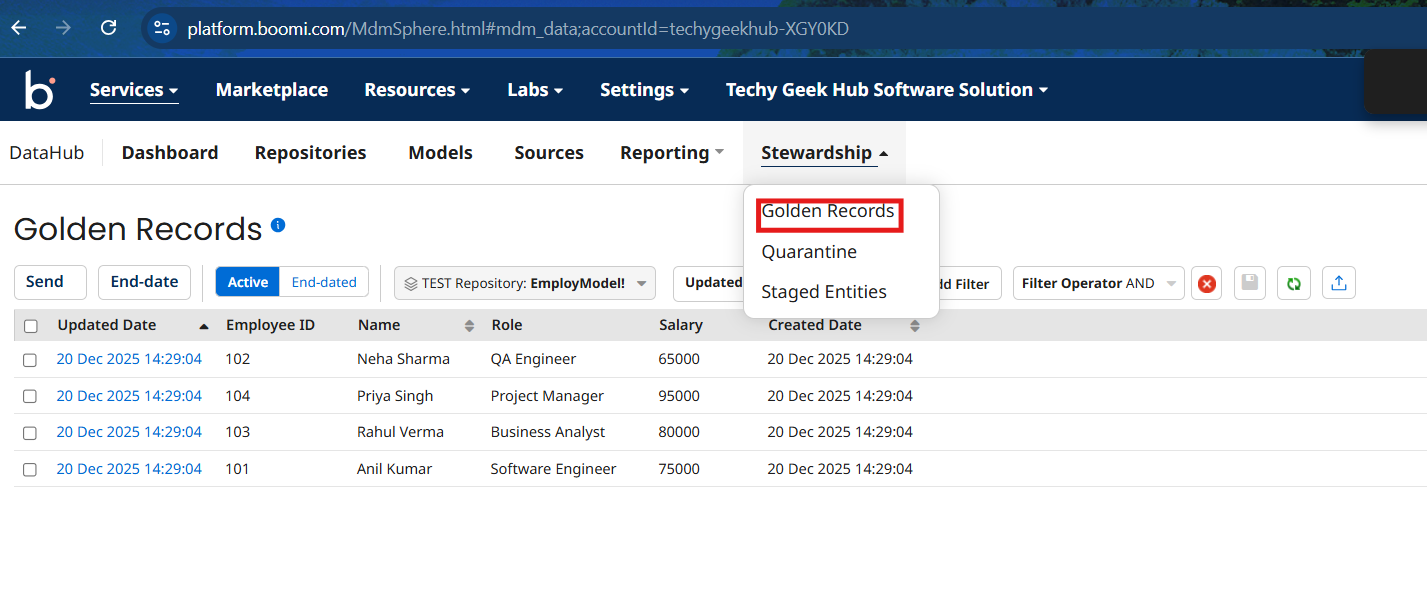

Now if you Navigate to Data Hub and Steward ship you can see the golden and quarantine records

Out of 5, 4 records were golden and 1 record is quarantined due to same Name as match rule

Creating Integration Process to query Quarantine Entries

Now we will see how to create duplicate golden record using API

Now create another process component and give proper name

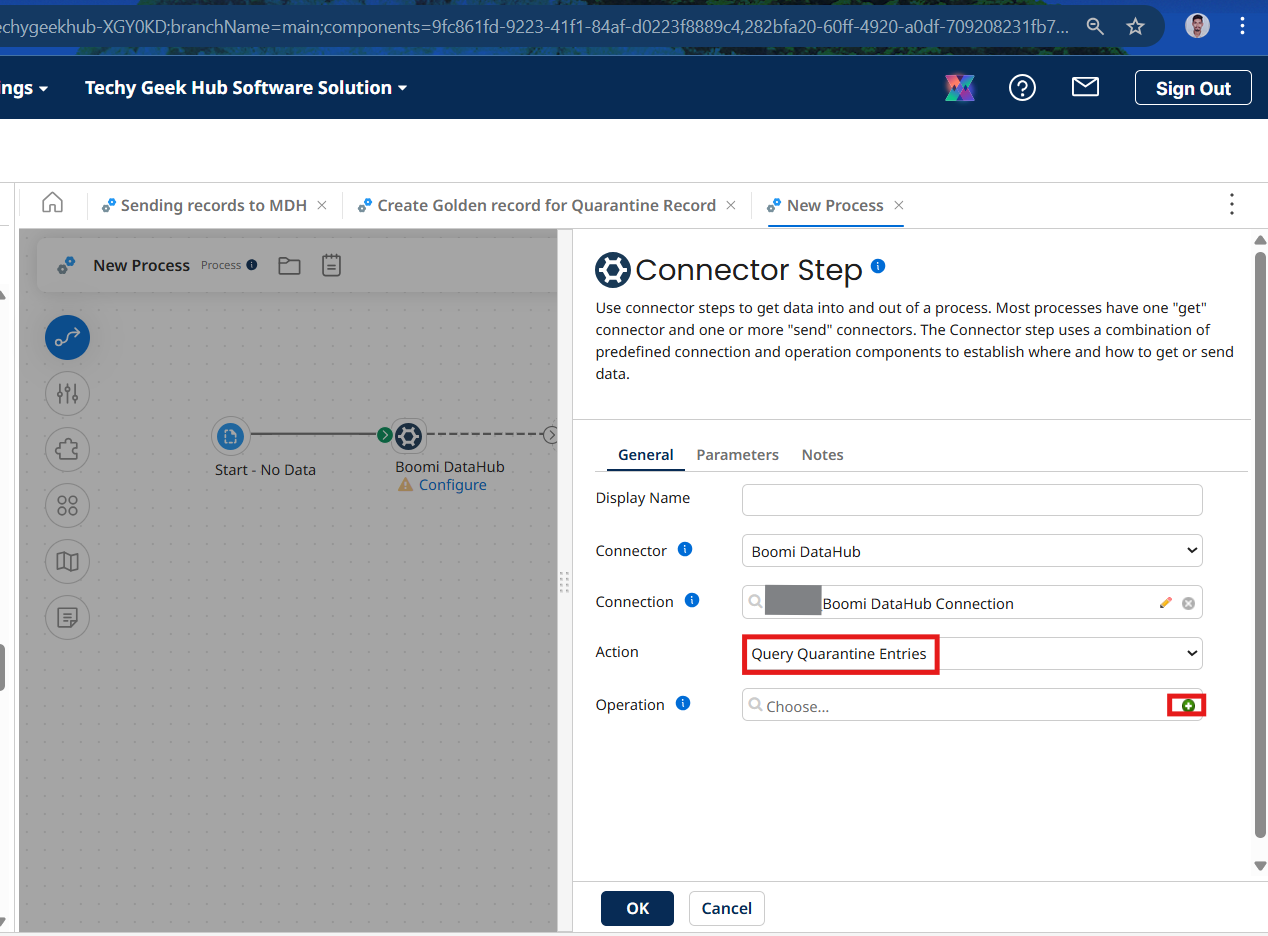

Configure start shape with no data, drag and drop Boomi data Hub connector into boomi and configure the action as Query Quarantine Entries

Choose the connection which you created before

Now click on plus icon to create operation component

Give proper name to the operation component and click on import button

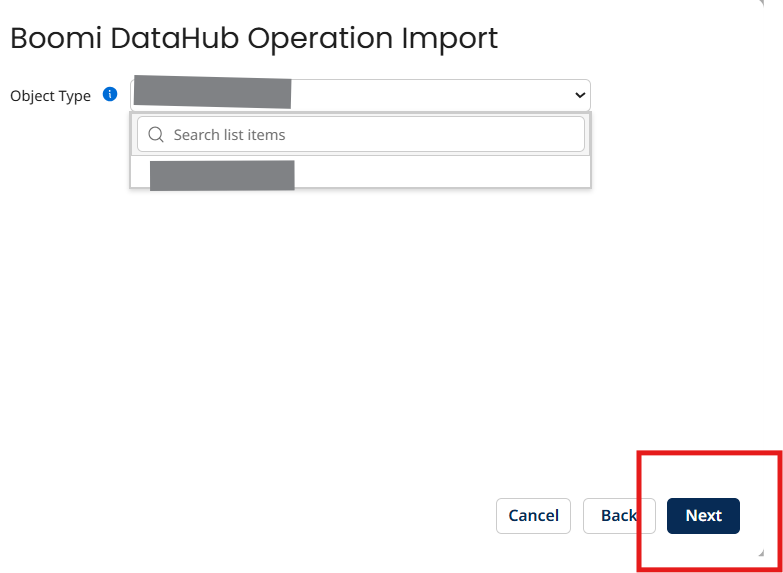

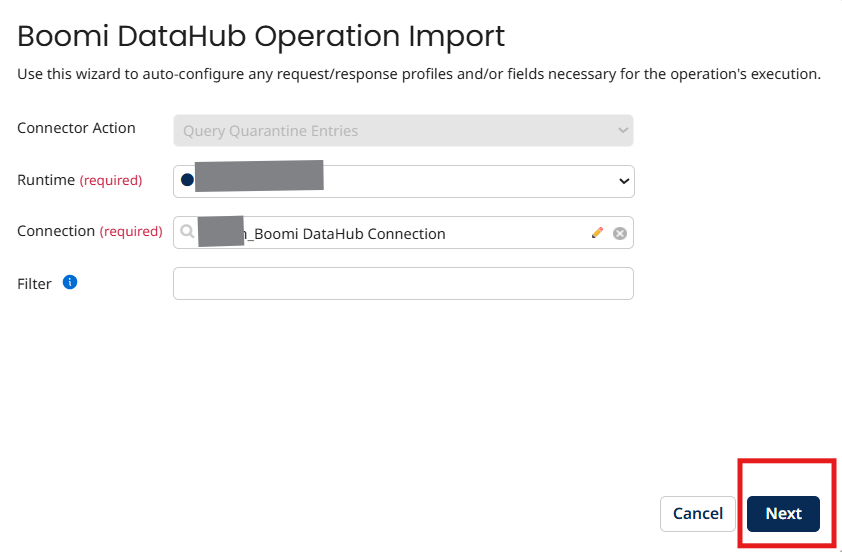

Now choose the runtime engine and connection component created previously and click on next

Now choose your model from the drop down and click on next

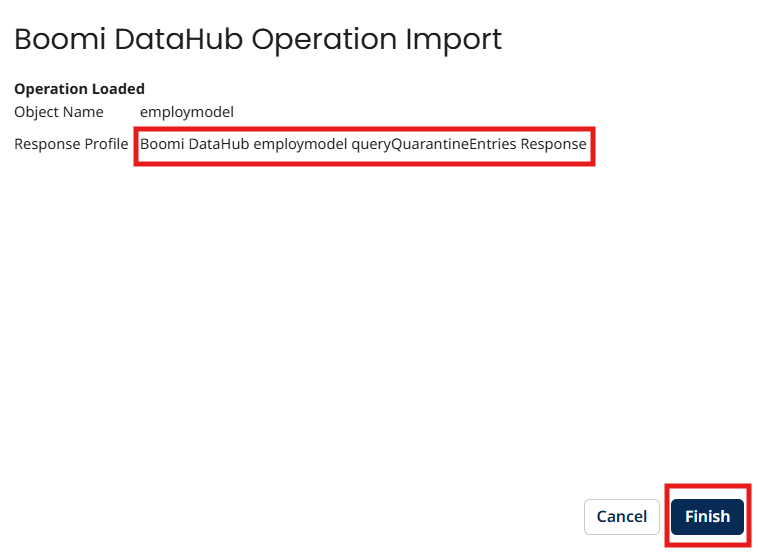

The Response profile for Quarantined records got created and click on finish

Save and close the operation component

Now to create a duplicate golden record we need to capture the source entity id for the quarantine entry

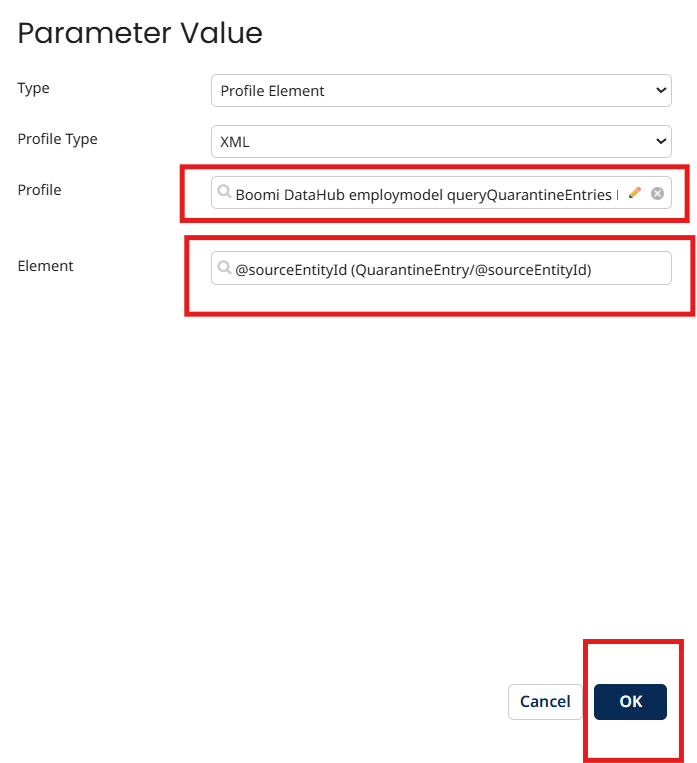

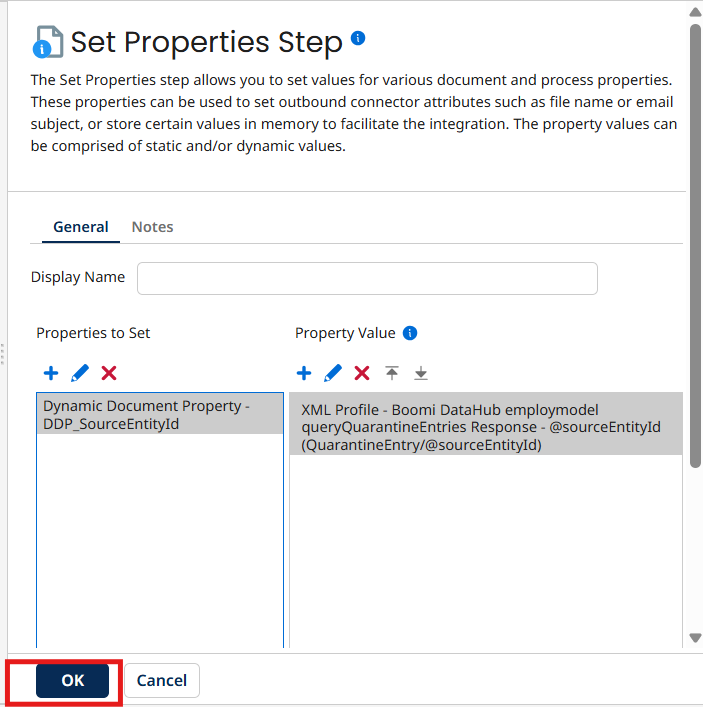

now drag and drop set properties shape to process canvas and store Source entity Id in a DDP as shown below

Creating HTTP Client Connector Connection

Now Drag and drop HTTP client connector to the process canvas and choose the action as send

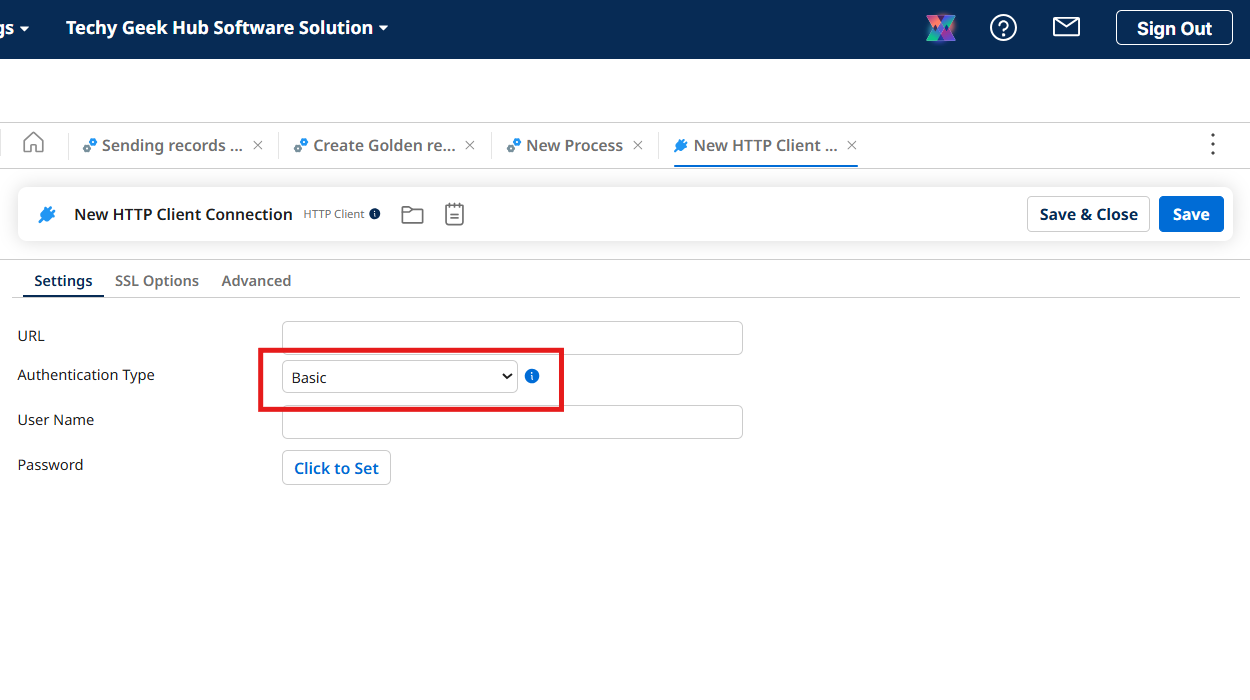

Click on plus icon in connection tab to create connection component and click on basic authentication

Provide proper name to the Connection component

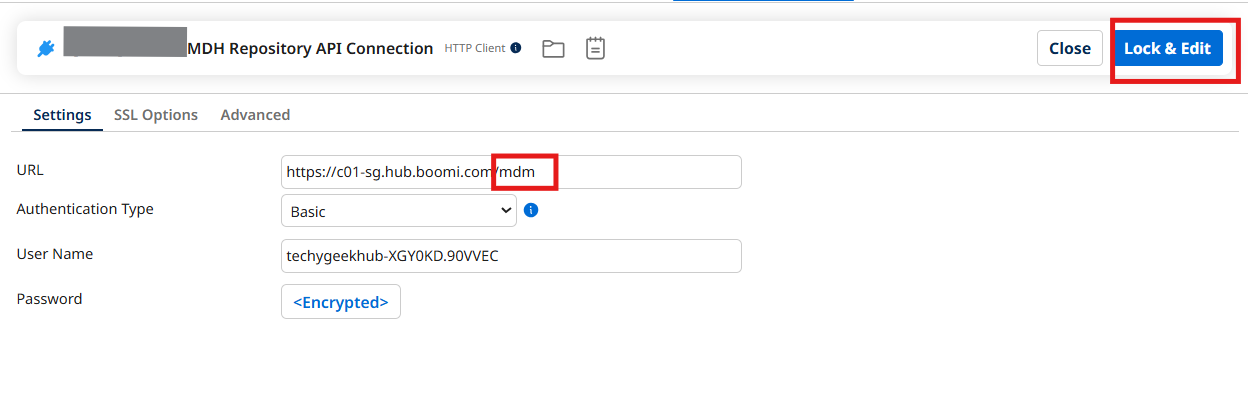

Now go to Data Hub Service and choose your repository and navigate to configure and copy Base URL, user name and My Hub Authentication token and paste them in the HTTP client connection component

Concatinate /mdm to the base URL, click on lock and edit save and close

Configuring Resource Path

Now click on plus icon operation

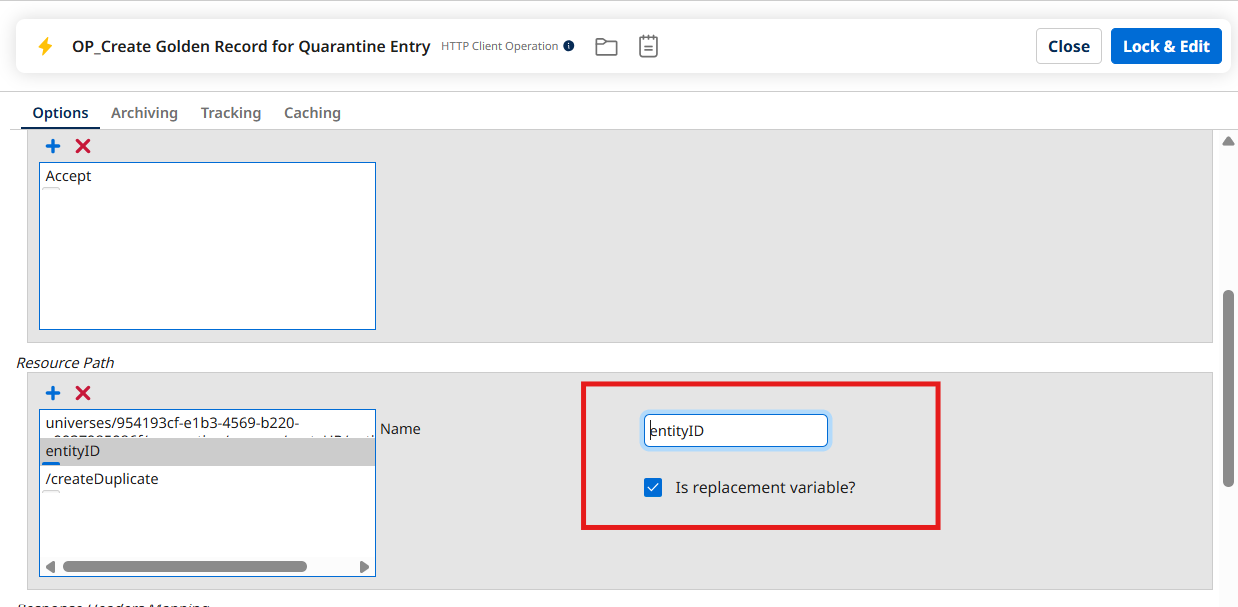

/universes/<universeID>/quarantine/sources/<sourceID>/entities/<entityID>/createDuplicate

Use this in the resource path

Give universeID, sourceID, as static and entityID dynamically

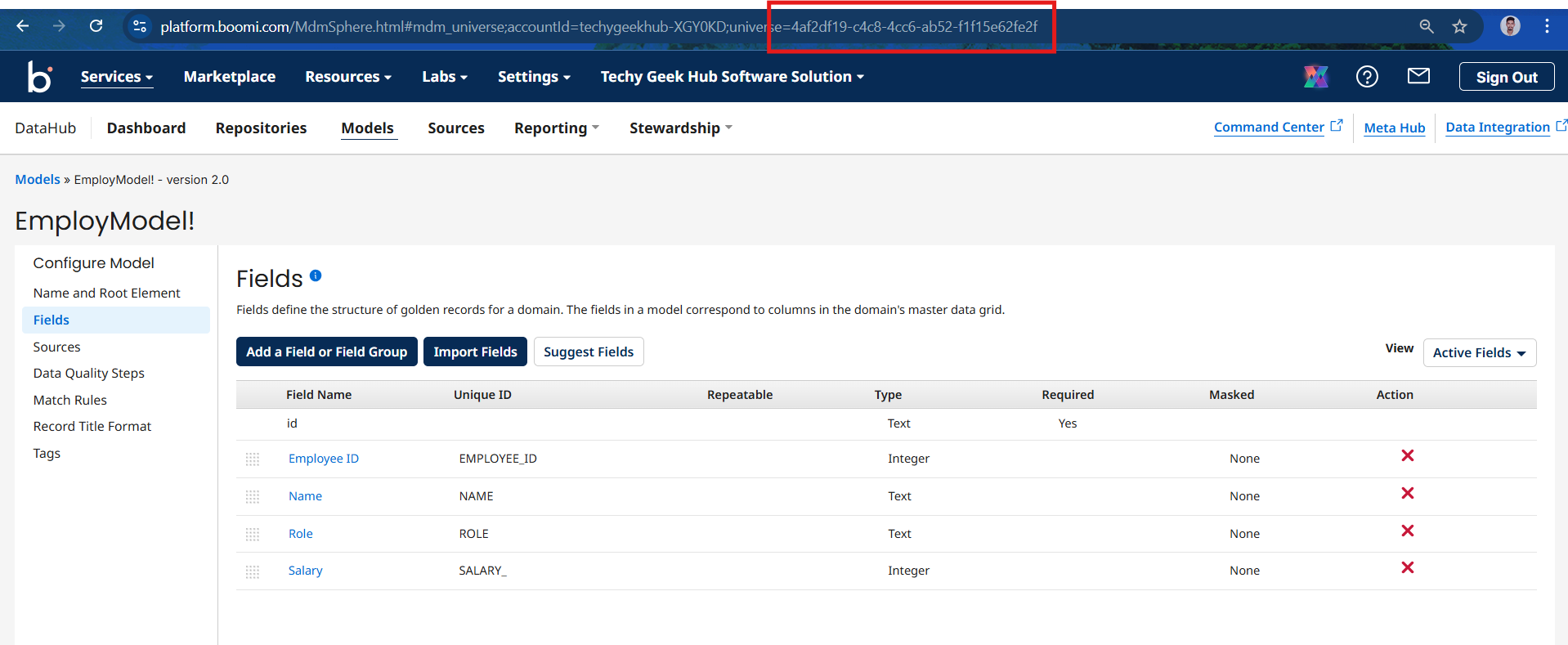

You will get universe Id in the URL once you choose your model

entityID is configured as replaceable passed dynamical which was captured and in DDP before

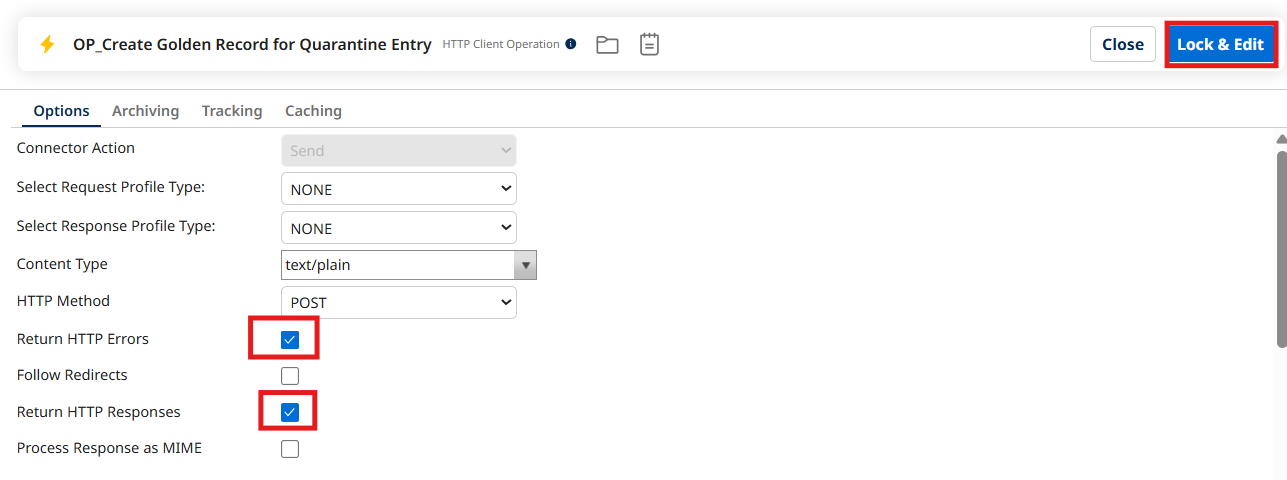

Configure the options as shown above and click on lock and edit and save and close

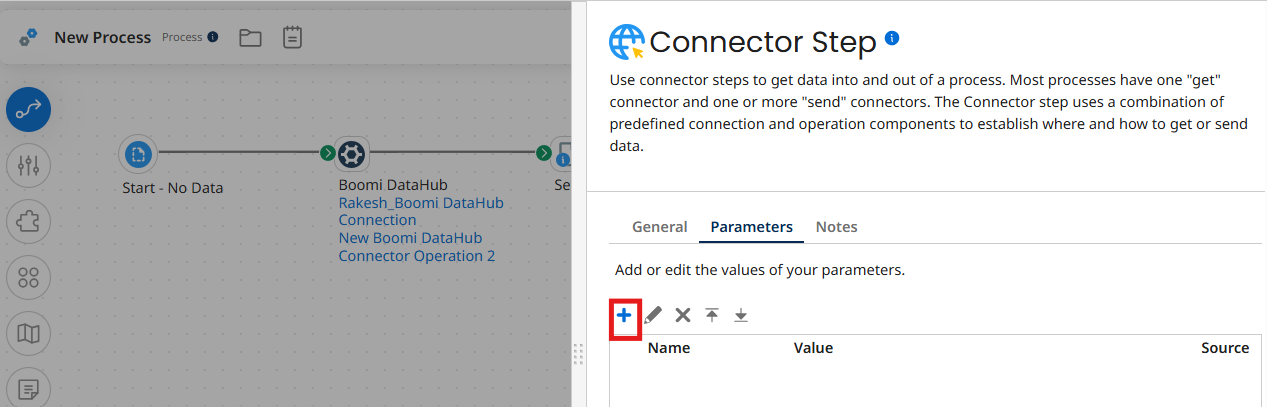

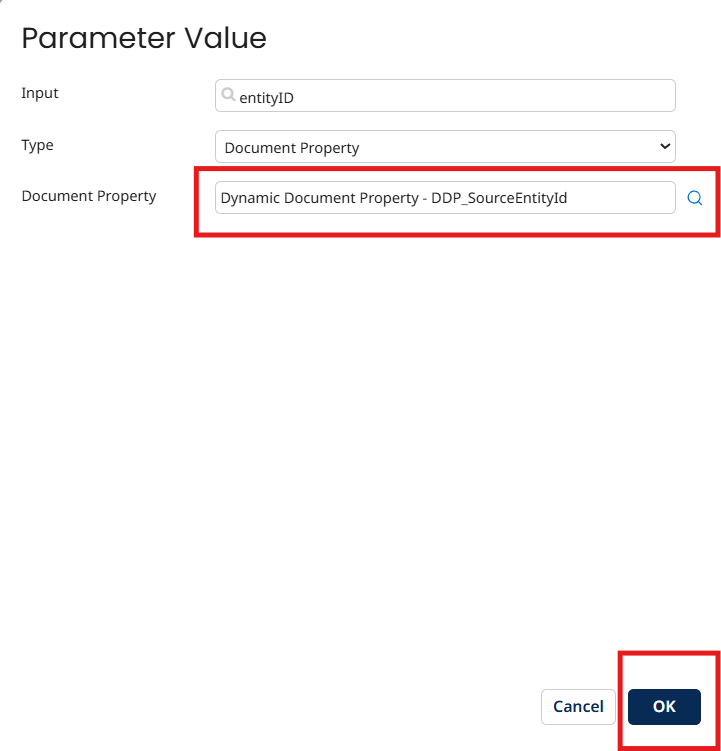

Now Click on Http client connector and navigate to parameter tab and click on plus icon and pass DDP_EntityId which was create before

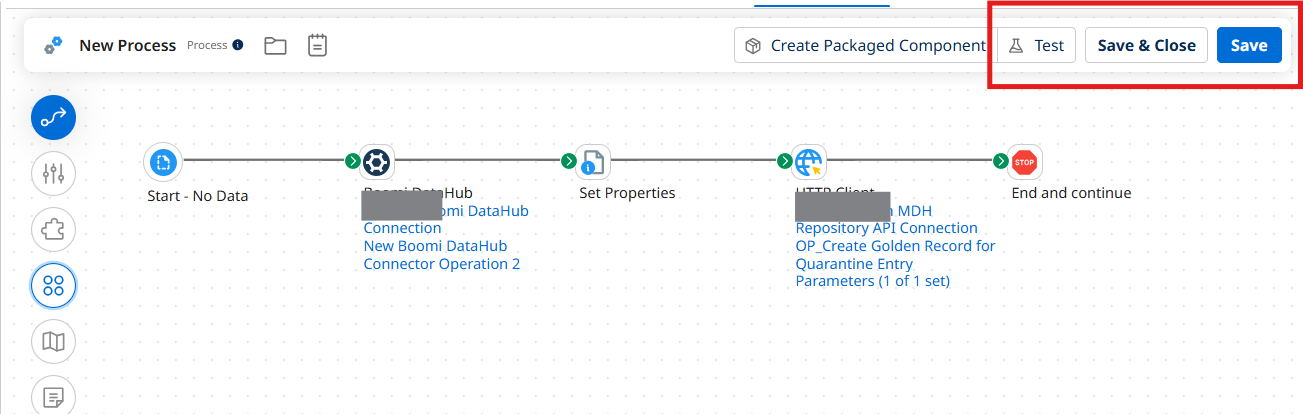

Arrange the shapes as shown here

Clik on save and close and test

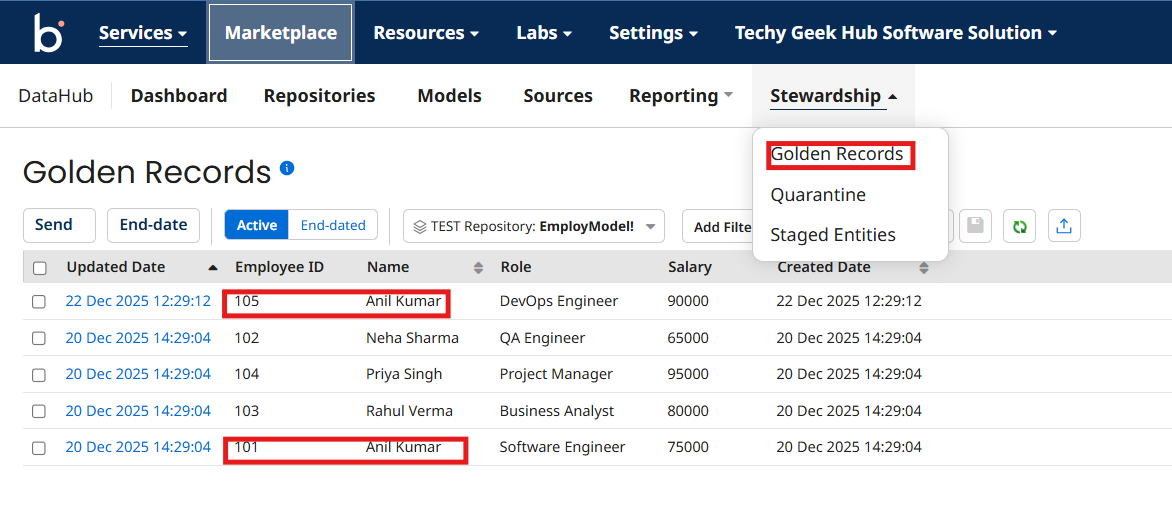

Now go to golden records and observe the records

You can see quarantined record was created as duplicate golden record
